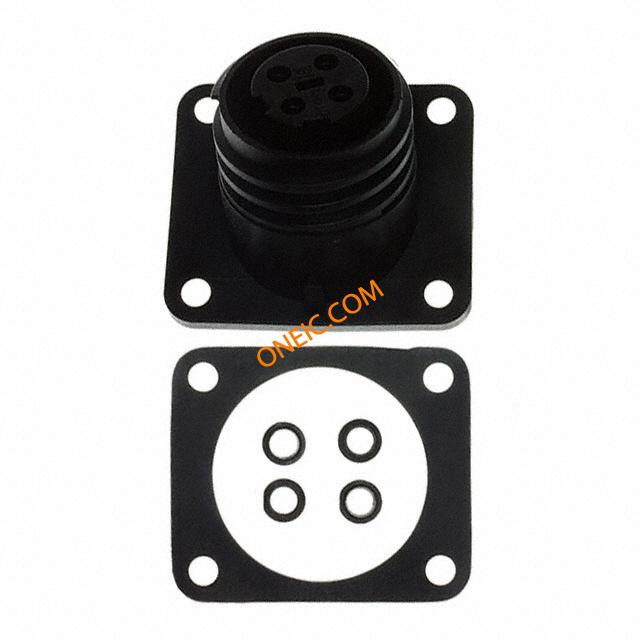

PX0941/04/S
| Manufacturer | |
| Description | Standard Circular Connector 4P PNL MOUNT SKT CONN RCPT 4POS PNL MNT SKT 4 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Screw ST Panel Mount 4 Terminal 1 Port SOCKET, FLANGE, 4WAY Connector;Socket;4;ScrewTerminal;32A/25A(CSA);600VAC/VDC;-40degC Connector: circular; socket; female; PIN:4; Buccaneer 900; IP68 Appliance socket with flange, 4-pole 4, PX0941/04/S, Bulgin Bulgin Buccaneer 系列 4路 面板安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :UL 94V-0 |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2000V |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Depth | :60mm | Width | :70mm |
| Length | :51mm | Weight | 0.092 |
| Packaging | Bulk | Wire Gauge | :2.5mm² |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Mounting Type | Panel Mount, Flange | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Flange |
| Insertion Angle | :- | Locking Feature | threaded joint, external thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | Polyamide | Package Quantity | 10 |
| Primary Material | Sealed | Connector - Cable | socket |
| Termination Style | Axial Screw | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 4 |
| Contact Termination | :Screw | Number of Positions | 4 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Wire Gauge or Range - mm2 | :4mm² | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 10 | Type | PanelSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Manufacturer | 900Series | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
| Application Specifics | Commercial | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

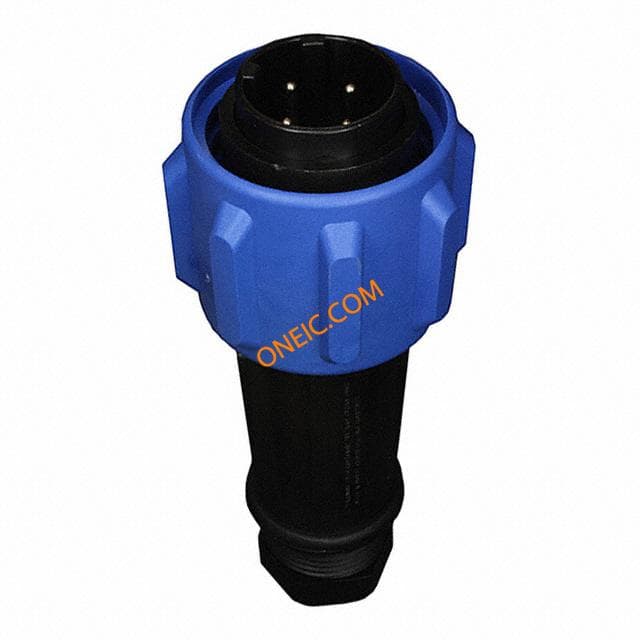

PX0911/04/P
