PX0941/02/S
| Manufacturer | |
| Description | Standard Circular Connector 2P PNL MOUNT SKT CONN RCPT 2POS PNL MNT SKT 2 Pole Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, FLANGE, 2WAY Connector;Socket;2;ScrewTerminal;32A/30A(CSA);600VAC/VDC;-40degC Connector: circular; socket; female; PIN:2; Buccaneer 900; IP68
sale Appliance socket with flange, 2-pole 2, PX0941/02/S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 连接器 , 母触点 |
| Category |
Business
| Other Names | 708-1219 | Product Category | Standard Circular Connector |
| Standard Package | 10 | Factory Pack Quantity | 10 |
Compliance
| RoHS | Compliant | Tariff No | 85366990 |
| Approval Agency | :UL 94V-0 | Material Flammability Rating | UL94-V0 |
Electrical
| Voltage Rating | 600VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2000V |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Depth | :60mm | Width | :70mm |
| Length | :51mm | Weight | 0.072 |
| Packaging | Bulk | Wire Gauge | :2.5mm² |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Mounting Type | Panel Mount, Flange | Angle of Throw | Straight |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Flange |
| Insertion Angle | :- | Locking Feature | threaded joint, external thread |
| Material - Body | :Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | Polyamide | Package Quantity | 10 |
| Primary Material | Sealed | Connector - Cable | socket |
| Termination Style | Axial Screw | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 2 |
| Contact Termination | :Screw | Number of Positions | 2 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| Wire Gauge or Range - mm2 | :4mm² | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyamide | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 10 | Type | PanelSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Manufacturer | 900Series | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
| Application Specifics | Commercial | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts

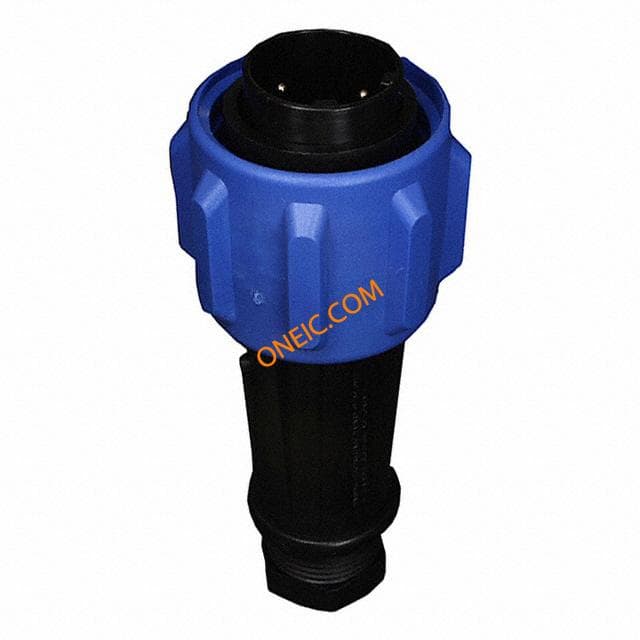

PX0911/02/P
