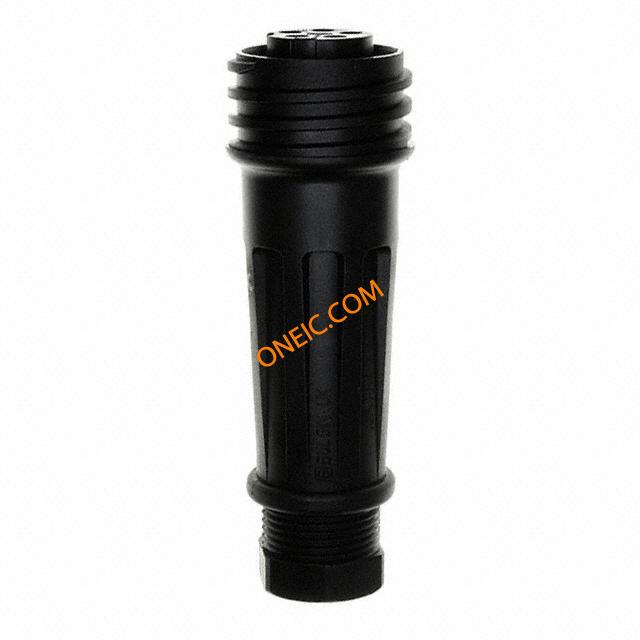

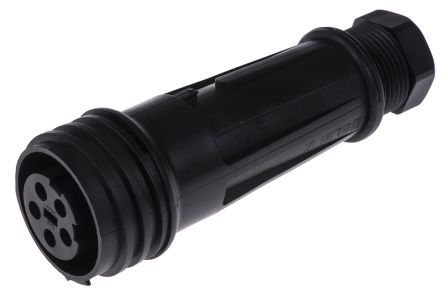

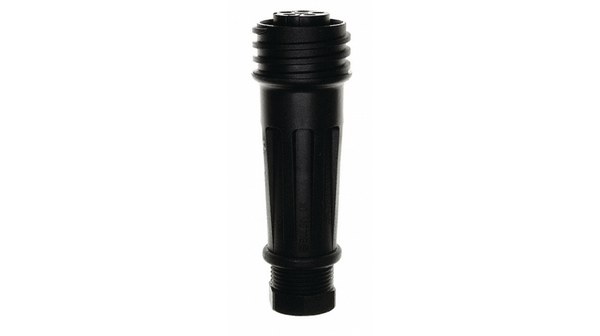

PX0921/05/S
| Manufacturer | |
| Description | Standard Circular Connector 5 POLE IN-LINE SKT CONN RCPT 5POS INLINE SKT 5 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, IN-LINE, 5WAY CableConnector,In-Line;5;Socket;6to8mmDia;In-LineFlex;Screw;600 Connector: circular; plug; female; PIN:5; Buccaneer 900; for cable Coupling socket Buccaneer 900, 5-pole 5, PX0921/05/S, Bulgin Bulgin Buccaneer 系列 5路 电缆安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :UL 94V-0 |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2000V |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Width | :46mm | Length | :127mm |
| Weight | 0.12 | Packaging | Bulk |
| Wire Gauge | :2.5mm² | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 13-15mm | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | Brass | Housing Material | Polyamide |
| Package Quantity | 20 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Axial Screw |
| 1st Contact Gender | Female | Mating Orientation | Threaded |
| Number of Contacts | 5 | Contact Termination | :Screw |
| Number of Positions | 5 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | :4mm² |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Spg | 20 | Type | CableSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Manufacturer | 900Series | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
