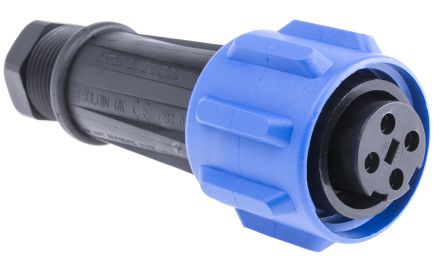

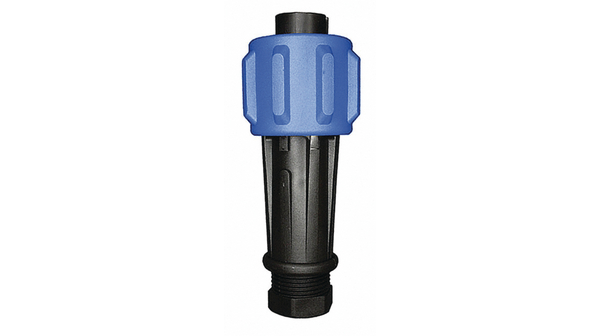

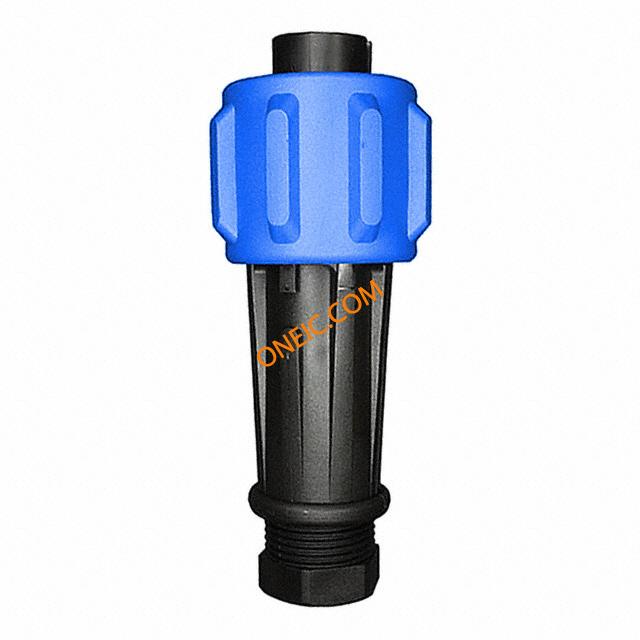

PX0911/04/S
| Manufacturer | |
| Description | Standard Circular Connector 4 POLE FLEX SOCKET CONN PLUG 4POS CABLE SKT 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 4 POS Screw ST Cable Mount 4 Terminal 1 Port SOCKET, FREE, 4WAY CONN PLUG 4POS INLINE SKT Connector;Socket;4;127mm;50mm(Min.);13to15mm;32A;600V;-40degC Connector: circular; plug; female; PIN:4; Buccaneer 900; for cable Cable socket Buccaneer 900, 4-pole 4, PX0911/04/S, Bulgin Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
| Factory Pack Quantity | 10 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :UL 94V-0 |
| Material Flammability Rating | UL94-V0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Voltage - Working | :600V |
| Contact Resistance | :10mohm | Dielectric Strength | :2000V |
| Current Rating (Max) | 32A | Insulation Resistance | :5Mohm |
Mechanical
| Width | :50mm | Length | :127mm |
| Weight | 0.16 | Packaging | Bulk |
| Wire Gauge | :2.5mm² | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Contact Type | Socket | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 13-15mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | Brass | Housing Material | Polyamide |
| Package Quantity | 10 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Axial Screw |
| 1st Contact Gender | Female | Mating Orientation | Threaded |
| Number of Contacts | 4 | Contact Termination | :Screw |
| Number of Positions | 4 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | :4mm² |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyamide |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Spg | 10 | Type | CableSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Manufacturer | 900Series | Product Type | Connectors |
| Adapter Series | Buccaneer 900 | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
Documents & Media
Similar Parts
PXA921/04/P
Bulgin
Standard Circular Connector 4 POLE IN-LINE PLUG CONN RCPT 4POS IN-LINE PIN Conn Buccaneer PL 4 POS Screw ST Cable Mount 4 Terminal 1 Port Connector: circular; plug; male; PIN:4; Buccaneer 900; for cable
PX0990
Bulgin
Standard Circular Connector SEALING CAP FOR PX0911/PXA911 SEALING CAP FOR PX0911 & PXA911 Heavy duty sealing cap for PX0911 and PXA911 Connector Accessories Sealing Cap HeavydutysealingcapforPX0911andPXA911 Bulgin 连接器
PX0941/04/P
Bulgin
Standard Circular Connector 4P PNL MOUNT PLUG CONN RCPT 4POS PNL MNT PIN 4 Pole Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series PLUG, FLANGE, 4WAY Connector;Plug;4;ScrewTerminal;32A/25A(CSA);600VAC/VDC;-40degC;IP6 Connector: circular; socket; male; PIN:4; Buccaneer 900; IP68; 32A sale Appliance plug with flange, 4-pole 4, PX0941/04/P, Bulgin Bulgin Buccaneer 系列 4路 面板安装 连接器 , 公触点
PX0980
Bulgin
Standard Circular Connector GLAND PACK CONN PXO GLAND FOR 7-13MM CABLE Bulgin 900 buccaneer gland pack,7-13mm Connector Accessories Gland Pack GLAND PACK, 7-13MM CABLE Accessory,Buccaneer;PX0911andPX0921;IP68(Sealing);900Series Gaskets set; Buccaneer 900; 7÷13mm; Application: PX09..plugs Sealing ring for cable ø 7...13 mm, PX0980, Bulgin Bulgin 电缆固定头 , -40°C至+85°C
PX0960
Bulgin
Standard Circular Connector SEALING CAP SEALING CAP W/PX0911 AND PXA911 Bulgin 900 buccaneer sealing cap type1 Connector Accessories Sealing Cap CAP, SEAL, PX0911 Accessory,Buccaneer;PX0911andPXA911;IP68(Sealing);900Series Protection cover; threaded joint, external thread Protective cap IP 68, PX0960, Bulgin Bulgin Buccaneer 900 系列 IP68 防尘盖
PX0921/04/P
Bulgin
Standard Circular Connector 4 POLE IN-LINE PLG CONN RCPT 4POS INLINE PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PL 4 POS Screw ST Cable Mount 4 Terminal 1 Port PLUG, IN-LINE, 4WAY CableConnector,In-Line;4;Plug;13top15mmDia;In-LineFlex;Screw;32/25A Connector: circular; plug; male; PIN:4; Buccaneer 900; for cable Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 , 公触点

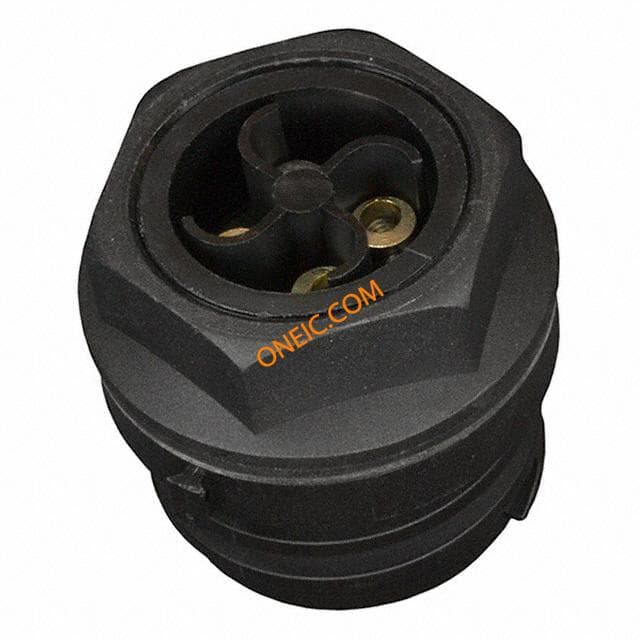

PX0931/04/P
