PX0838/2M00
| Manufacturer | |
| Description | Cable Assemblies IP68 RJ45-IP68 RJ45 CABLE IP68 RJ45 PLUG-PLUG - 2M Buccaneer-Buccaneer patch lead w/conn,2m Ethernet Cables / Networking Cables IP68 RJ45-IP68 RJ45 Cable Assembly Patch Cord 2m 24AWG 8 POS RJ-45 to 8 POS RJ-45 PL-PL PATCH LEAD, 2X BUCCANEER, 2M Connector;2m;24AWG;DoubleEnded;NonBooted;Black;ULListed Patch cord; 2m; RJ45 plug, both sides; Buccaneer Ethernet; PIN:8 Bulgin 2m 黑色 PUR护套 S/FTP屏蔽 5e类网线组件 |
| Category |
Business
| Product | Ethernet & Telecom Assemblies | Product Category | Cable Assemblies |
| Standard Package | 5 | Factory Pack Quantity | 5 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85444290 |
| Approval Agency | :TIA/EIA Rating Cat5e | ||
Electrical
| Impedance | :100ohm | Voltage Rating | 30 VAC, 42 VDC |
| Current Rating (Max) | 1.5 A | Number of Conductors | 8 |
Mechanical
| Color | Black | Height | :2m |
| Length | 2 m | Weight | 0.19 |
| Shielding | Shielded | Cable Type | Round Cable |
| Wire Gauge | 24 | Cable Group | :Network |
| Shield Type | S/FTP | Size - Body | Ø38.1 x 60.6mm |
| Cable Length | :6.5ft | Jacket Color | :Black |
| 1st Connector | RJ45, IP 68 | 2nd Connector | RJ45, IP 68 |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug to Plug |
| Number of Pins | 1 | Locking Feature | threaded joint, internal thread |
| Contact Material | phosphor bronze | Package Quantity | 10 |
| Color - Connectors | Black | Diameter - Outside | :5.6mm |
| Length - Lead Wire | :2m | Number of Positions | 8 |
| Plating - Thickness | 50µm | Material - Insulation | PUR |
| Contact Material - Plating | gold plated | Material - Housing & Prism | polyamide |
| Jacket (Insulation) Material | Polyethylene (PE) | 2nd Connector Number of Positions | 1 |
Product Info
| Spg | 10 | Type | Cat 5e |
| Style | Industrial Environments - IP68 | Gender | Male / Male |
| Series | Buccaneer | Features | Circular Threaded Coupling |
| Function | Cat 5E patch cords | Adapter Series | Buccaneer Ethernet |
| Number of Units | 1 | Other Specifications | Straight Through |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | ||
Environmental
| Ingress Protection | IP68 | Operating Temperature | :85°C |
Documents & Media
Similar Parts

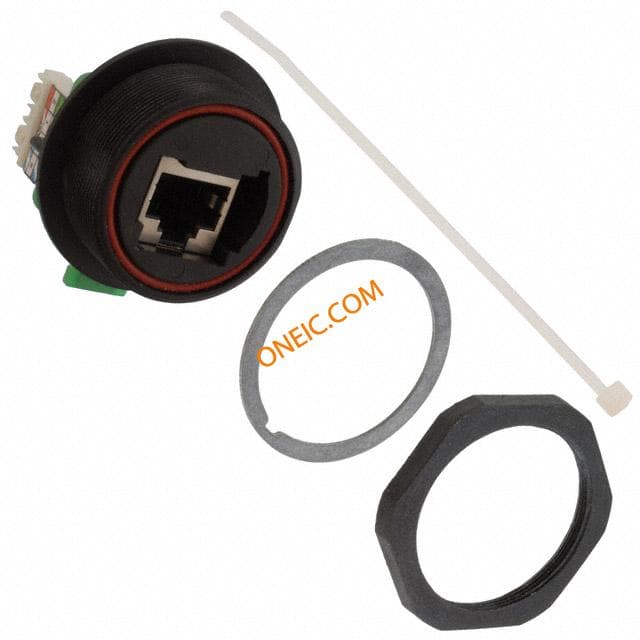

PX0839/IDC
Bulgin
モジュラーコネクタ/Ethernetコネクタ CAT 5E COUPLER CONN MOD JACK 8P8C SHIELDED Buccaneer Cat5e IDC mount conn. IP68 Modular Connectors / Ethernet Connectors CAT 5E COUPLER Conn RJ-45 Coupler F 8 POS ST Panel Mount 8 Terminal 1 Port Cat 5e CONNECTOR, ETHERNET, IDC MOUNT, 8WAY IP68EthernetBuccaneerIDCtermination(Cat5ecoupler) Bulgin Cat5e RJ45 管接头, 1端口, 带屏蔽
PX0835
Bulgin
CONN CAP SEAL FOR PX0846/PX0851 Sealing cap for cable connector Modular Connectors / Ethernet Connectors SEALING CAP Connector Accessories USB Sealing Cap CAP, BUCCANEER, RJ45 Cap,Sealing;FitsflexconnectorsPX0830-832,PX0834,PX0836-838;Buccaneer Protection cover; IP68; threaded joint Protective cap, PX0835, Bulgin Bulgin IP68 防尘盖

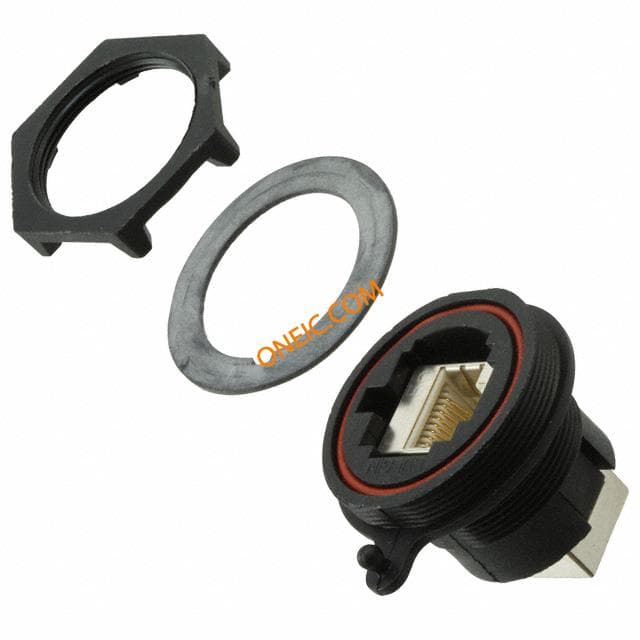

PX0833
