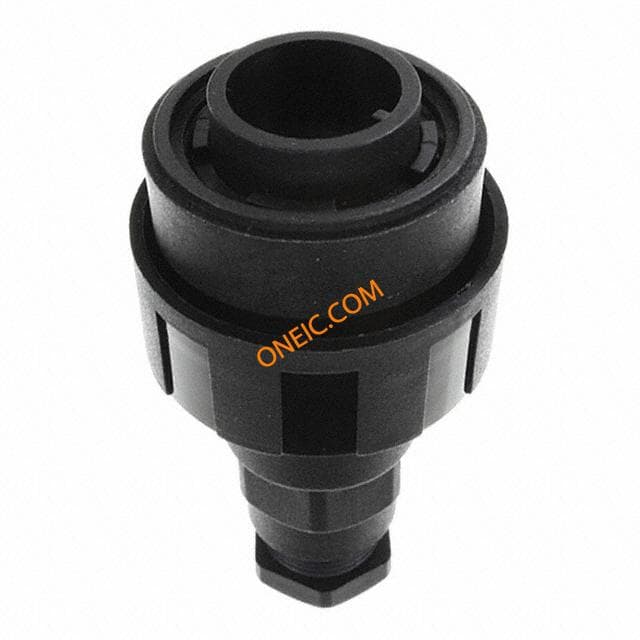

PX0796/S
| Manufacturer | |
| Description | Standard Circular Connector 12 POLE CHAS MT SKT CRIMP/SOLDER CONN HSNG RCPT JAM NUT 12POS SKT 12 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series SOCKET, PANEL, 12WAY Connector,CircularIP68;12;Crimp/Solder;5A;50VAC/VDC;lt5Milliohms Bulgin Buccaneer 系列 12路 面板安装 直向 连接器 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | :CSA, UL, VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 50 V ac/dc | Voltage - Working | :50V |
| Contact Resistance | :5mohm | Current Rating (Max) | 5A |
| Insulation Resistance | :100Mohm | ||
Mechanical
| Weight | 0.014 | Packaging | Bulk |
| Wire Gauge | 22-26 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Crimp, Solder |
| Contact Type | Crimp and Solder Cup | Mounting Type | Panel Mount |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Receptacle for Female Contacts | Contact Finish | Gold over Nickel |
| Fastening Type | Threaded | Mounting Style | Panel |
| Insertion Angle | :- | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | GlassFilledPolyamide |
| Primary Material | Sealed | Termination Style | Crimp / Solder |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Mating Orientation | Threaded | Number of Contacts | 12 |
| Dielectric Material | Polyamide | Number of Positions | 12 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Panel | Diameter - Outside, Non-Expanded | :8.1mm |
Product Info
| Note | Contacts Not Provided | Type | PanelSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Product Type | Connectors | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | +70°C | ||
