PX0748/P
| Manufacturer | |
| Description | Standard Circular Connector 4 POLE FLEX PLUG CONN PLUG 4POS CABLE PIN 4 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 4 POS Screw ST Cable Mount 4 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 4 WAY, CABLE CONN PLUG 4POS INLINE PIN Connector,StandardBuccaneer;Pin;4;69.0mm;38.1mm;3.5to9mm;6A Connector: circular; plug; male; PIN:4; Buccaneer Standard; IP68 Bulgin Buccaneer 系列 4路 电缆安装 直向 连接器 插头 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 277VAC/DC | Current Rating (Max) | 10A |
Mechanical
| Weight | 0.028 | Packaging | Bulk |
| Wire Gauge | 16 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Contact Type | Pin | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | GlassFilledPolyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Screw | 1st Contact Gender | Male |
| Color - Connectors | :Black | Mating Orientation | Threaded |
| Number of Contacts | 4 | Contact Termination | :Screw |
| Dielectric Material | Polyamide | Number of Positions | 4 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8mm |
Product Info
| Spg | 25 | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
| Adapter Series | Buccaneer Standard | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
PX0747/S
Bulgin
Standard Circular Connector 4 POLE CHAS MT SKT CONN RCPT 4POS PNL MNT SKT 4 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series PX0747/S Conn Buccaneer SKT 4 POS Screw ST Panel Mount 4 Terminal 1 Port SOCKET, PANEL, 4 POLE Connector;Socket;4;16AWG;Screw;6A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:4; Buccaneer Standard Bulgin Buccaneer 系列 4路 面板安装 直向 连接器 插座
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

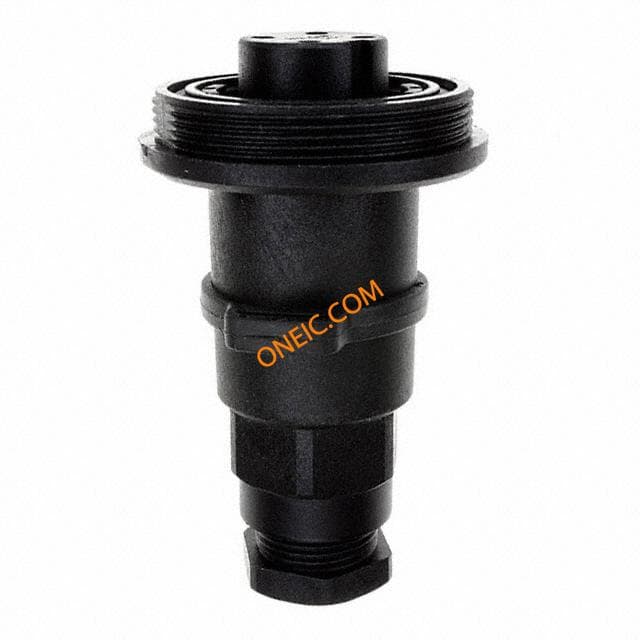

PX0749/S
