PX0736/P
| Manufacturer | |
| Description | Standard Circular Connector 2 POLE FLEX PLUG CONN PLUG 2POS CABLE PIN 2 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Screw ST Cable Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 2 WAY, CABLE CONN PLUG 2POS INLINE PIN Connector,StandardBuccaneer;Pin;2;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; male; PIN:2; Buccaneer Standard; IP68 Cable plug Buccaneer, 2-pin 2, PX0736/P, Bulgin Bulgin Buccaneer 系列 2路 电缆安装 直向 连接器 插头 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 277VAC/DC | Voltage - Working | :277V |
| Contact Resistance | :10mohm | Current Rating (Max) | 12A |
Mechanical
| Length | :69mm | Weight | 0.028 |
| Material | :Black nylon | Packaging | Bulk |
| Wire Gauge | 12 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Contact Type | Pin | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | GlassFilledPolyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Screw | 1st Contact Gender | Male |
| Diameter - Outside | :38.1mm | Mating Orientation | Threaded |
| Number of Contacts | 2 | Contact Termination | :Screw |
| Dielectric Material | Polyamide | Number of Positions | 2 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8mm |
Product Info
| Spg | 25 | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
| Adapter Series | Buccaneer Standard | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

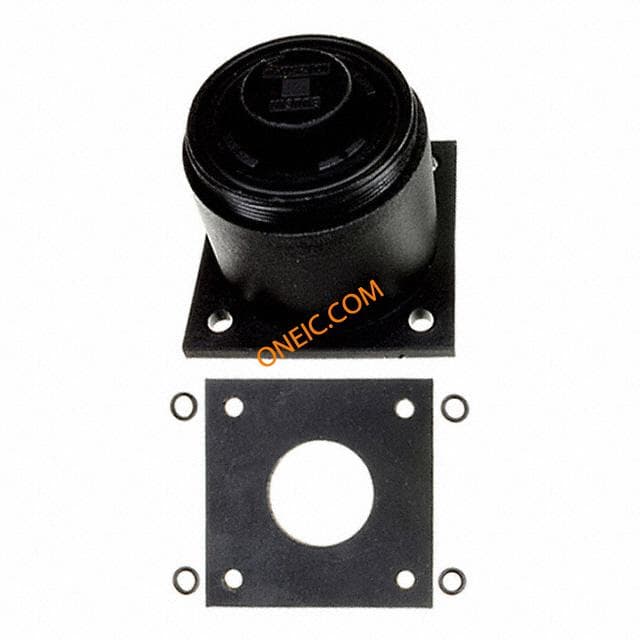

PX0757/S
Bulgin
Standard Circular Connector 2 POLE FLANGE SKT BULKHEAD CONN RCPT 2POS PNL MNT SKT Conn Buccaneer SKT 2 POS Screw ST Flange Mount 2 Terminal 1 Port SOCKET, SEALED, BULKHEAD, 2W Connector;Socket;2;SuppliedFitted;43.0mm;44.5mm;ScrewTerminal;10A
PX0764/S
Bulgin
Standard Circular Connector 2 POLE FLANGE SKT LOW PROFILE CONN RCPT 2POS PNL MNT SKT 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Flange Mount 2 Terminal 1 Port SOCKET, LOW PROFILE, 2 POLE Connector;Socket;2;SuppliedFitted;ScrewTerminal;10A;250VAC/VDC Connector: circular; socket; female; PIN:2; Buccaneer Standard Panel Mount Sockets Standard Buccaneer® with flange 2, PX0764/S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 母触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

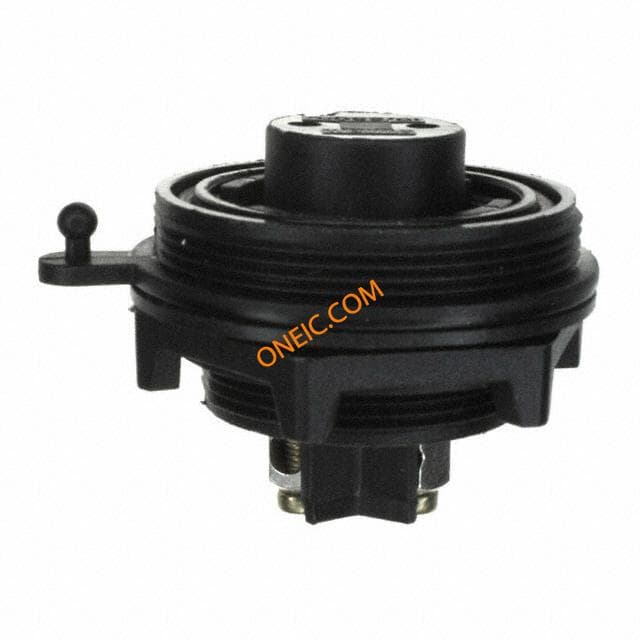

PX0735/S
Bulgin
Standard Circular Connector 2 POLE CHAS MT SKT CONN RCPT 2POS PNL MNT SKT 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 2 POS Screw ST Panel Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, RCPT, 2 WAY, PANEL Connector;Socket;2;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:2; Buccaneer Standard Device bushing Buccaneer, 2-pin 2, PX0735/S, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 母触点
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列

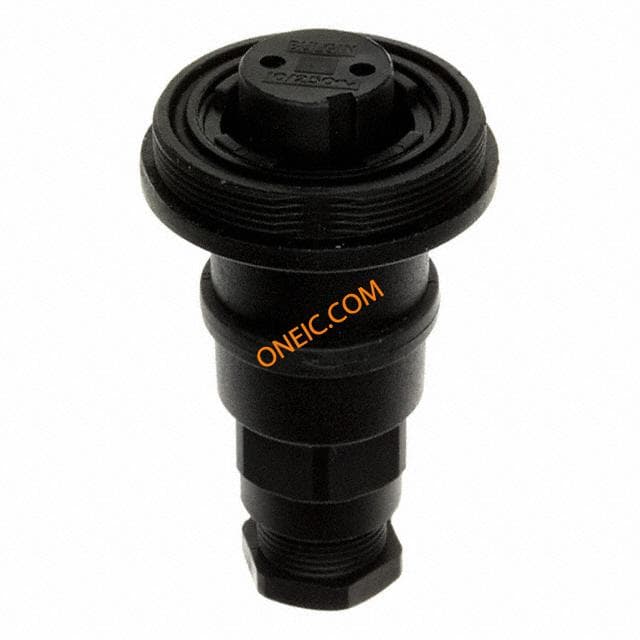

PX0737/S
