PX0731/S
| Manufacturer | |
| Description | Standard Circular Connector 3 POLE FLEX SOCKET CONN PLUG 3POS CABLE SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CONN PLUG 3POS INLINE SKT Connector,StandardBuccaneer;Socket;3;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; female; PIN:3; Buccaneer Standard; IP68 Cable socket, 3-pin 3, PX0731/S, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插座 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 277VAC/DC | Contact Resistance | :10mohm |
| Current Rating (Max) | 12A | ||
Mechanical
| Length | :69mm | Weight | 0.036 |
| Packaging | Bulk | Wire Gauge | 12 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Screw | Contact Type | Socket |
| Body Material | polyamide | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Angle of Throw | Straight |
| Cable Diameter | 6-8mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Material - Body | :Glass Filled Nylon (Polyamide) |
| Contact Material | Brass | Housing Material | GlassFilledPolyamide |
| Package Quantity | 25 | Primary Material | Sealed |
| Connector - Cable | plug | Termination Style | Screw |
| 1st Contact Gender | Female | Color - Connectors | :Black |
| Diameter - Outside | :38.1mm | Mating Orientation | Threaded |
| Number of Contacts | 3 | Contact Termination | :Screw |
| Dielectric Material | Polyamide | Number of Positions | 3 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide, Glass Filled |
| 1st Connector Mounting Type | :Cable | Diameter - Outside, Non-Expanded | :8mm |
Product Info
| Spg | 25 | Type | CableSocket |
| Gender | :Receptacle | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
| Adapter Series | Buccaneer Standard | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

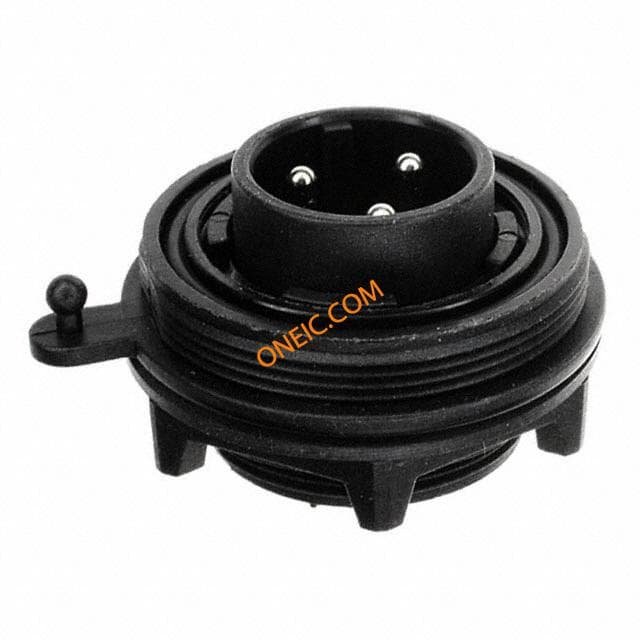

PX0730/P
Bulgin
Standard Circular Connector 3 POLE CHAS MT PLUG CONN RCPT 3POS PNL MNT PIN 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 3 POS Screw ST Panel Mount 3 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 3 WAY, PANEL Connector;Pin;3;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Connector: circular; socket; male; PIN:3; Buccaneer Standard; IP68 Panel-mount male receptacle, 3-pin 3, PX0730/P, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 插头

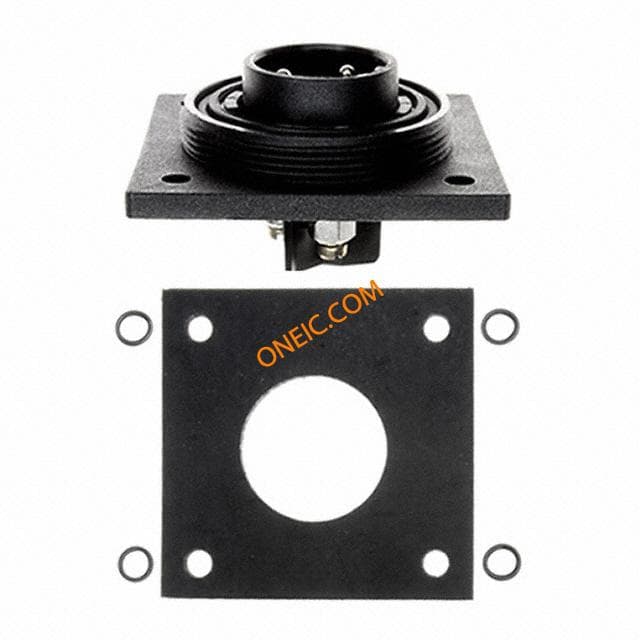

PX0765/P
Bulgin
Standard Circular Connector 3 POLE FLANGE PLUG LOW PROFILE CONN RCPT 3POS PNL MNT PIN 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 3 POS Screw ST Flange Mount 3 Terminal 1 Port PLUG, LOW PROFILE, 3 POLE Connector;Pin;3;SuppliedFitted;ScrewTerminal;10A;250VAC/VDC;-20degC Panel Mount Plug Standard Buccaneer® with flange 3, PX0765/P, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 , 公触点
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列
PX0709/P/03
Bulgin
Standard Circular Connector 3 POLE REAR PNL MNT PIN/SCREW CONN RCPT 3POS JAM NUT PIN Conn Buccaneer PIN 3 POS Screw ST Panel Mount 3 Terminal 1 Port StandardBuccaneerRearPanelMountingConnector

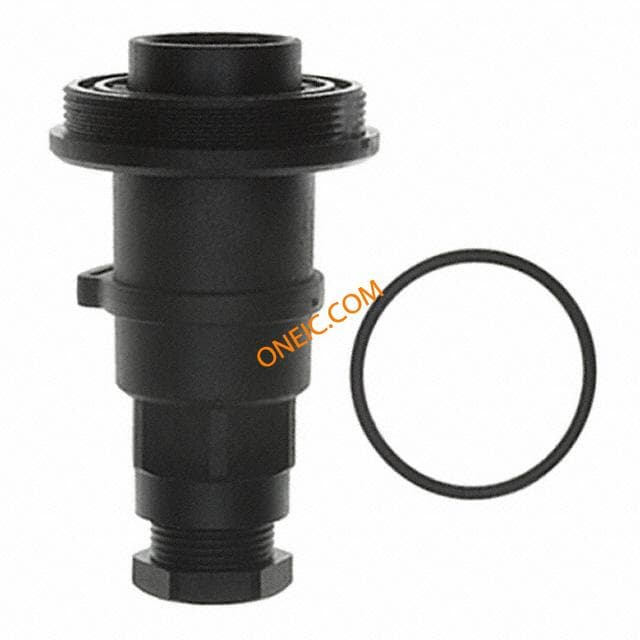

PX0732/P
