PX0731/P
| Manufacturer | |
| Description | Standard Circular Connector 3 POLE FLEX PLUG CONN PLUG 3POS CABLE PIN 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 3 WAY, CABLE CONN PLUG 3POS INLINE PIN Connector,StandardBuccaneer;Pin;3;69.0mm;38.1mm;3.5to9mm;10A Connector: circular; plug; male; PIN:3; Buccaneer Standard; IP68 Cable plug Buccaneer, 3-pin 3, PX0731/P, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插头 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | ULRecognized/CSA/VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 277VAC/DC | Contact Resistance | :10mohm |
| Current Rating (Max) | 12A | Insulation Resistance | :100Mohm |
Mechanical
| Length | :65mm | Weight | 0.032 |
| Material | :Glass Filled Nylon | Packaging | Bulk |
| Wire Gauge | 12 | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Contact Type | Pin | Body Material | polyamide |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Angle of Throw | Straight | Cable Diameter | 6-8mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Insertion Angle | :- | Locking Feature | threaded joint, internal thread |
| Material - Body | :Glass Filled Nylon (Polyamide) | Contact Material | Brass |
| Housing Material | GlassFilledPolyamide | Package Quantity | 25 |
| Primary Material | Sealed | Connector - Cable | plug |
| Termination Style | Screw | 1st Contact Gender | Male |
| Color - Connectors | :Black | Diameter - Outside | :38.1mm |
| Mating Orientation | Threaded | Number of Contacts | 3 |
| Contact Termination | :Screw | Dielectric Material | Polyamide |
| Number of Positions | 3 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide, Glass Filled | 1st Connector Mounting Type | :Cable |
| Diameter - Outside, Non-Expanded | :8.1mm | ||
Product Info
| Spg | 25 | Type | CablePlug |
| Gender | :Plug | Series | Buccaneer |
| Features | ScrewLocking | Product Type | Connectors |
| Adapter Series | Buccaneer Standard | Number of Units | 1 |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68/69K - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 70°C | ||
Documents & Media
Similar Parts
12023
Bulgin
Cable Mounting & Accessories CABLE GLAND 6-8MM COLOR BLACK SEALING GLAND BLACK

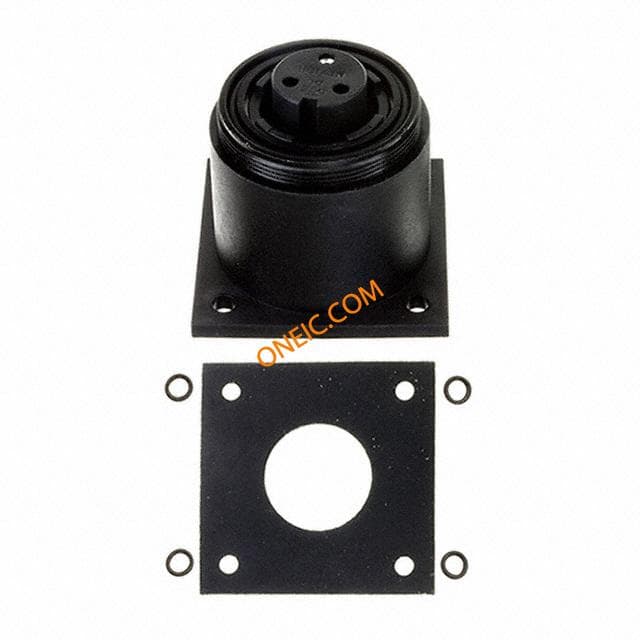

PX0756/S
Bulgin
Standard Circular Connector 3 POLE FLANGE SKT BULKHEAD CONN RCPT 3POS PNL MNT SKT Connector; Socket; 3; Supplied Fitted; 43.0 mm; 44.5 mm; Screw Terminal; 10 A Conn Buccaneer SKT 3 POS Screw ST Flange Mount 3 Terminal 1 Port SOCKET, SEALED, BULKHEAD, 3W Connector;Socket;3;SuppliedFitted;43.0mm;44.5mm;ScrewTerminal;10A

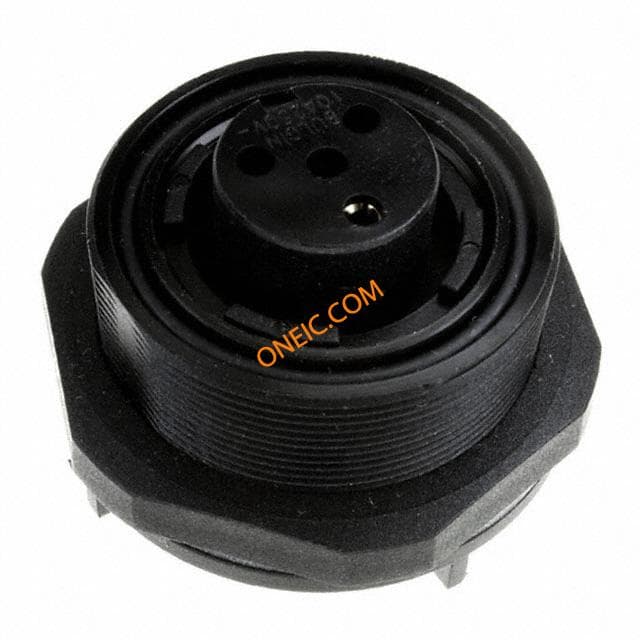

PX0707/S/03
Bulgin
Standard Circular Connector 3 POLE PCB SKT CONN RCPT 3POS PNL MNT PCB SKT Conn Buccaneer SKT 3 POS Solder ST Thru-Hole 3 Terminal 1 Port Connector,CircularIP68;3;PCB;10A;250VAC/VDC;lt10Milliohms;IP68
PX0734
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR USE W/CABLE Sealing Cap Tool CAP/ASSEMBLY TOOL Cap,Sealing;FitsflexMountingtypes,Buccaneer Protection cover; external thread; Buccaneer Standard; IP68 Protective cap, PX0734, Bulgin Bulgin 外壳

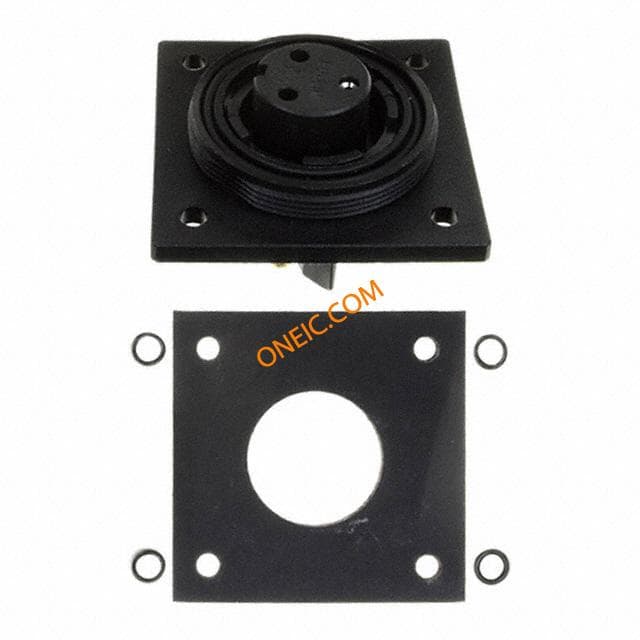

PX0765/S
Bulgin
Standard Circular Connector 3 POLE FLANGE SKT LOW PROFILE CONN RCPT 3POS PNL MNT SKT 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Flange Mount 3 Terminal 1 Port SOCKET, LOW PROFILE, 3 POLE Connector;Socket;3;SuppliedFitted;ScrewTerminal;10A;250VAC/VDC Connector: circular; socket; female; PIN:3; Buccaneer Standard Panel Mount Sockets Standard Buccaneer® with flange 3, PX0765/S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 插座
SA3253
Bulgin
Standard Circular Connector GLAND 3 PACK 3.5-5MM 5-7MM & 7-9MM STANDARD BUCCANEER GLAND PACK Gland pack Cable Accessories Gland CABLE GLAND, CLAMP STANDARD CableGland(Clamp);3/pk Gaskets set; Buccaneer Standard; IP68; 3.5÷9mm Bulgin 电缆固定头 , -20°C至+70°C
PX0730/S
Bulgin
Standard Circular Connector 3 POLE CHAS MT SKT CONN RCPT 3POS PNL MNT SKT 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Panel Mount 3 Terminal 1 Port CIRCULAR CONN, RECEPTACLE, 3 WAY, PANEL Connector;Socket;3;12AWG;Screw;10A;250V;10Milliohms(Max.);Panel Connector: circular; socket; female; PIN:3; Buccaneer Standard Device bushing Buccaneer, 3-pin 3, PX0730/S, Bulgin Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 插座
PX0733
Bulgin
Standard Circular Connector SEALING CAP CONN CAP SEALING FOR W/ALL OTHER Sealing cap for chassis connector Connector Accessories USB Sealing Cap SEALING CAP, FOR PX0847 CONNECTOR Cap,Sealing;Fitspanelmountandflex-in-lineconnector;Buccaneer Protection cover; Buccaneer Standard; IP68; internal thread Protective cap, PX0733, Bulgin Bulgin 插座 IP68 防尘盖

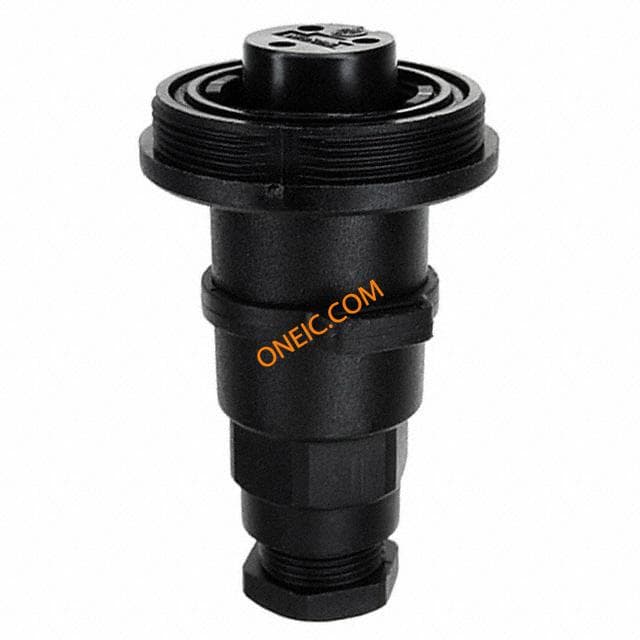

PX0732/S
Bulgin
Standard Circular Connector 3 POLE IN-LINE SKT CONN RCPT 3POS INLINE SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Screw ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CableConnector,In-Line;3;Socket;6to8mmDia;In-LineFlex;Screw;10A Connector: circular; plug; female; PIN:3; Buccaneer Standard; IP68 Coupling bushing Buccaneer, 3-pin 3, PX0732/S, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 插座
12237
Bulgin
Standard Circular Connector STR REL 5-7 & 7-9MM CABLE SUPPORT FOR STD BUCCANEER Cable strain relief for IP68 connector STRAIN RELIEF, BUCCANEER CableSupport;BuccaneerSuitablefor5-7mmand7-9mmcablediameters Bend protection; Buccaneer Standard; IP68; 5÷7mm Anti-kink sleeve for for cable 5...9 mm, 12237, Bulgin Bulgin 应变消除, 使用于Buccaneer 系列
PX0709/S/03
Bulgin
Standard Circular Connector 3 POLE REAR PNL MNT SOCKET/SCREW CONN RCPT 3POS PNL MNT SKT STANDARDBUCCANEERREARPANELMOUNTINGCONNECTOR Bulgin PX0 系列 3路 面板安装 直向 连接器 插座 , 母触点, 螺纹接合
PX0732/S/07
Bulgin
CONN RCPT 3POS IN-LINE SKT
