PX0413/03P
| Manufacturer | |
| Description | Standard Circular Connector 3 POLE R/PANEL MOUNT CONN HSNG RCPT JAM NUT 3POS PIN 3 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series PLUG, CHASSIS, 3 WAY 400SERIESBUCCANEERSEALEDREARPANELMOUNTCONNECTORPLUG3PIN8AMPS Bulgin Buccaneer 系列 3路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 1 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
| Approval Agency | :CSA, UL, VDE | Material Flammability Rating | :UL94V-0 |
Electrical
| Voltage Rating | 250 V ac/dc | Current Rating (Max) | 8A |
Mechanical
| Weight | 0.012 | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Receptacle |
| Contact Type | Crimp and Solder Cup | Mounting Type | Panel Mount, Bulkhead - Front Side Nut |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Insertion Angle | :- | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | Polyamide (PA) |
| Primary Material | Sealed | 1st Contact Gender | Male |
| Number of Contacts | 3 | Number of Positions | 3 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyamide |
| 1st Connector Mounting Type | :Panel | Diameter - Outside, Non-Expanded | :7mm |
Product Info
| Note | Contacts Not Provided | Type | PanelPlug |
| Gender | :Plug | Series | Buccaneer |
| Manufacturer | 400Series | Product Type | Connectors |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts
SA3350/1
Bulgin
Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格
PX0410/03S/5055
Bulgin
Standard Circular Connector 3 POLE FLEX SKT 5.0-5.5MM YELLOW CONN HSNG PLUG CABLE 3POS SOCKET Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port

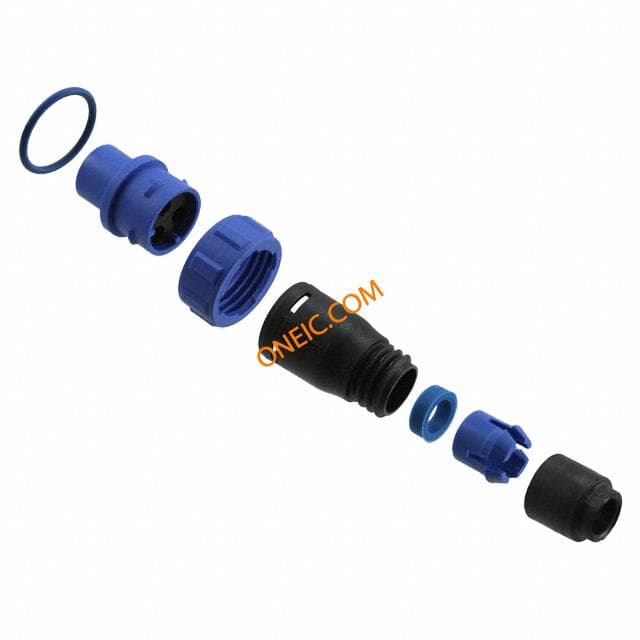

PX0410/03S/5560
Bulgin
Standard Circular Connector 3 POLE FLEX SKT CONN HSNG PLUG CABLE 3POS SKT 3 Pole Straight Cable Mount Industrial & Automation Circular Connector with Female Contacts Buccaneer Series Conn Buccaneer SKT 3 POS Crimp ST Cable Mount 3 Terminal 1 Port CIRCULAR, RECEPTACLE, 3 WAY, CABLE CONN HSNG PLUG INLINE 3POS SKT CONNECTOR,SEALED,CABLE,3CONTACTS,8A,SOCKETS Connector: circular; plug; female; PIN:3; w/o terminals; for cable Cable socket Buccaneer 400, 3-pole 3, PX0410/03S/5560, Bulgin Bulgin Buccaneer 系列 3路 电缆安装 直向 连接器 , 母触点

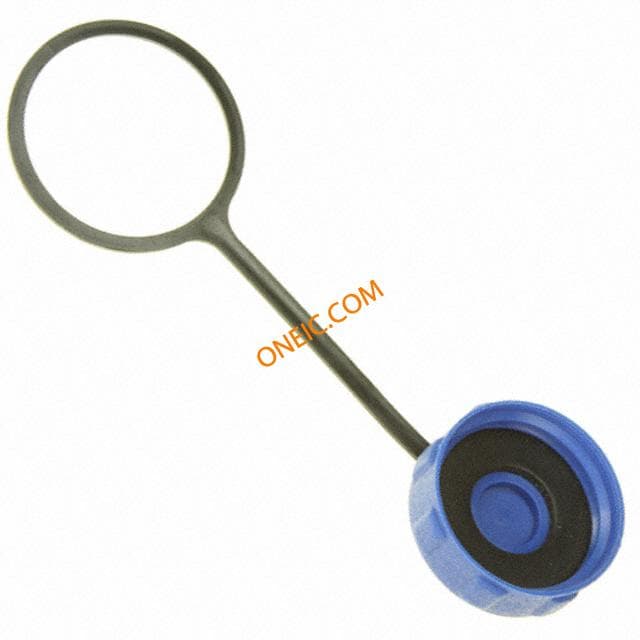

PX0484
