PX0412/02P
| Manufacturer | |
| Description | Standard Circular Connector 2 POLE CHAS MT PLUG CONN HSNG RCPT JAM NUT 2POS PIN 2 Pole Straight Panel Mount Industrial & Automation Circular Connector with Male Contacts Buccaneer Series Conn Buccaneer PIN 2 POS Crimp ST Panel Mount 2 Terminal 1 Port CIRCULAR CONNECTOR, PLUG, 2 WAY, PANEL Connector;Plug;2;20to24AWG;CrimpandSolder;8A;250VAC/VDC;UL94V-0 Connector: circular; socket; male; PIN:2; w/o terminals; IP68; 250V appliance plug Buccaneer 400, 2-pole 2, PX0412/02P, Bulgin Bulgin Buccaneer 系列 2路 面板安装 直向 连接器 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85366990 | Approval Agency | ULRecognized/CSA/VDE |
| Material Flammability Rating | :UL94V-0 | ||
Electrical
| Voltage Rating | 250 V ac/dc | Voltage - Working | :250V |
| Contact Resistance | :5mohm | Current Rating (Max) | 8A |
| Connector - Voltage Input | w/o terminals | ||
Mechanical
| Weight | 0.004 | Material | :Nitrile |
| Packaging | Bulk | Wire Gauge | :20AWG |
| Orientation | Keyed | Shell Style | Plug |
| Size - Body | Ø22 x 19.9mm | Termination | Crimp |
| Contact Type | Crimp and Solder Cup | Body Material | polyamide |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Angle of Throw | Straight |
| Connector Type | Receptacle for Male Contacts | Contact Finish | Gold |
| Fastening Type | Threaded | Mounting Style | Panel |
| Shell Material | Plastic | Insertion Angle | :- |
| Locking Feature | threaded joint, external thread | Material - Body | :Nylon (Polyamide) |
| Contact Material | Copper Alloy | Housing Material | Polyamide |
| Package Quantity | 25 | Primary Material | Sealed |
| Connector - Cable | socket | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 2 |
| Number of Positions | 2 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - AWG | :24AWG |
| 1st Connector Mounting Type | :Panel | Diameter - Outside, Non-Expanded | :7mm |
Product Info
| Spg | 25 | Note | Contacts Not Provided |
| Type | PanelPlug | Gender | :Plug |
| Series | Buccaneer | Manufacturer | 400Series |
| Product Type | Connectors | Adapter Series | Buccaneer 400 |
| Number of Units | 1 | ||
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +80°C | ||
Documents & Media
Similar Parts
SA3350/1
Bulgin
Standard Circular Contacts SOLDER PIN 2&3P AWG 1 = 1 PKT of 10/pcs CONT PIN 8A SLD 20-24AWG 1=10PC 8A solder pin contact,20-24awg Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 20-24AWG, SOLDER Contacts,Solder,Pin,2and3Pole Contact; male; 20÷24AWG; Buccaneer 400; gold plated; soldering Soldering contact, male, for , 2 and 3-pole, SA3350/1, Bulgin Bulgin 400 系列 8A 公 焊接端接 圆形 连接器 触芯, 使用于Buccaneer 400 系列圆形连接器, 24 → 20 AWG 线规格

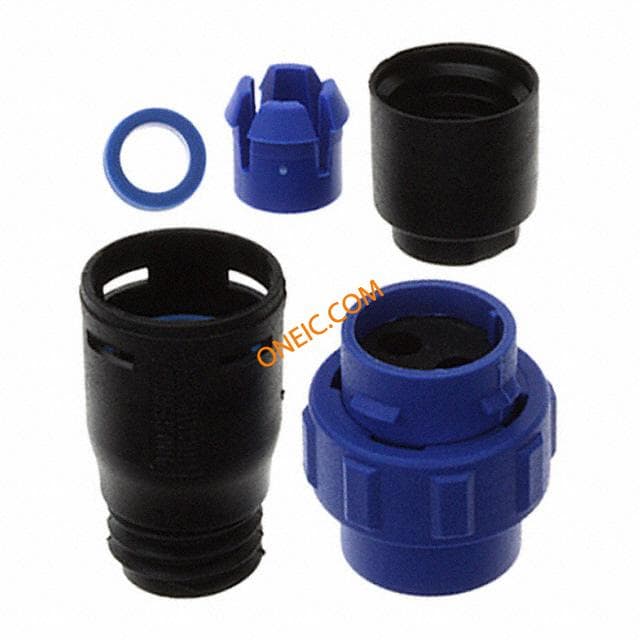

PX0410/02P/5560
