MPI002/28/GN/12
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,p/b,vandal res,ring grn,12V,IP66 SWITCH, VR, RING ILLUM, GRN, SLDR, 12V Bulgin IP66 SP - 常开 面板安装 瞬间 照明 按钮开关, 50 mA |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Tariff No | 85365011 | ||
Electrical
| Contact Resistance | :100mohm | LED Forward Voltage | :12V |
| Current - Max/Contact | :50mA | Insulation Resistance | :1000Mohm |
| Switch Function/Rating | Momentary | Contact Rating (Current) | 50 mA |
| Connector - Voltage Input | :Solder | Voltage - Supply (Vcc/Vdd) | :24V |
Mechanical
| Length | :32.7mm | Weight | 0.021 |
| Material | :Stainless Steel | LED Color | Green |
| Case Color | Silver | Actuator Type | Button |
| Mounting Type | Panel Mount | Terminal Type | Tab |
| Operating Force | :12N | Contact Material | Gold Plated |
| Diameter - Outside | :22mm | Illumination Color | :Green |
| Panel Cutout Shape | 19.2mm | Color - Actuator/Cap | :- |
| Contact Layout, Typical | SP-NO | Panel Cutout Dimensions | 19.2mm |
Product Info
| Illumination | Yes | ||
Environmental
| Seal Rating | IP66 | NEMA Frame Size | :IP66 |
| Operating Temperature | +70°C | ||
Similar Parts
MPI002/28/RD/12
Bulgin
SWITCH PUSH SPST-NO 0.05A 24V Switch,p/b,vandal res,ring red,12V,IP66 SWITCH, VR, RING ILLUM, RED, SLDR, 12V Bulgin IP66 SP - 常开 面板安装 瞬间 照明 按钮开关, 50 mA
$14.8400
Details

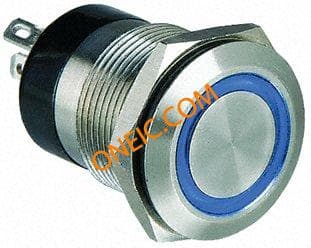

MPI002/28/BL/12
