MPI001/28/AM
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.05A 24V Switch,PB,vandal res,dot yellow,LED,IP66 Pushbutton Switches AMBER DOT SOLDER LUG Switch Push Button SPST Flush Round Button 0.05A 24VDC Quick Connect Panel Mount Switch,DotIlluminated;Amber;S.P.PushtoMake;50mA;24VDCMax.;2.8mmSolderTabs Bulgin SP 按钮开关, 0.05 A@ 24 V 直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Pushbutton Switches | Standard Package | 25 |
| Factory Pack Quantity | 25 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Circuit | SPST-NO | Operation | PushtoMake |
| Utilized LED | Noin-seriesresistorfittedtoLEDcircuit.Usermustconnectain-seriescurrentlimitresistordeterminedbyinputvoltage,LEDforwardvoltageandLEDforwardcurrent.Pleaserefertodatasheetfordetails. | Voltage Rating | 24V |
| Number of Poles | 1 | Switch Function | Off-Mom |
| Dielectric Strength | >2kV(ContacttoPanel),1500V(ContacttoContact) | Current Rating (Max) | 50mA (DC) |
| Contact Rating (Current) | 0.05 A @ 24 V dc | Illumination Voltage (Nominal) | 2.3 VDC |
Mechanical
| Packaging | Bulk | Termination | SolderLugs |
| Actuator Type | Round, Button, Flush | Mounting Type | Panel Mount, Front |
| Mounting Style | Panel | Termination Style | Quick Connect - 0.110" (2.8mm) |
| Color - Actuator/Cap | Silver | Mounting Hole Diameter | 19.2mm |
| Contact Layout, Typical | SP | Panel Cutout Dimensions | Circular - 19.20mm Dia |
| Illumination Type, Color | LED, Amber | ||
Product Info
| Type | Vandal Resistant, Illuminated | Features | Stainless Steel |
| Function | Y | Electrical Life | 35,000 Cycles |
Environmental
| Mechanical Life | 750,000 Cycles | Ingress Protection | IP66 - Dust Tight, Water Resistant |
| Operating Temperature | -30°C ~ 70°C | ||
Documents & Media
PDF Document
Similar Parts

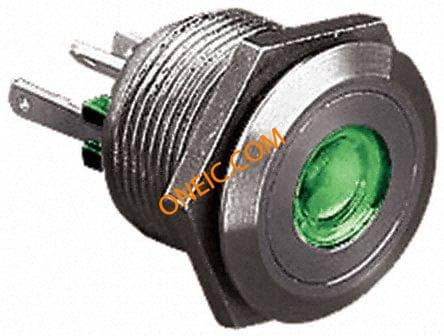

MPI001/28/GN
