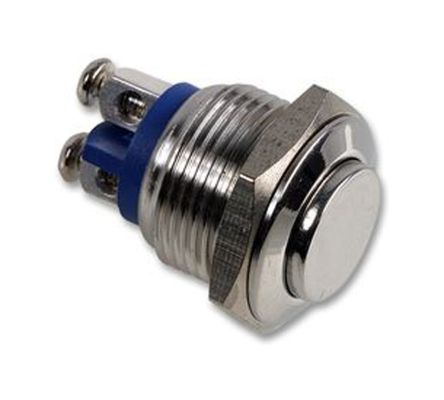

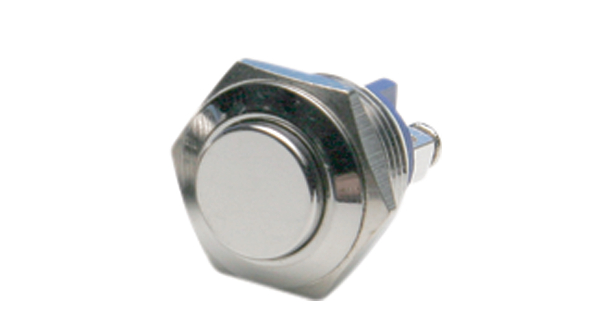

MP0042/3
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 2A 48V SWITCH; STAINLESS STEEL; PUSH BUTTON; PROMINENT PROFILE; S.P. PUSH TO MAKE Pushbutton Switches SPMB PROTRUDING BTN Switch Push Button N.O. SPST Round Button 2A 48VDC Screw Panel Mount SWITCH, RAISED, 16MM, MOM Switch,Pushbutton;SS;ProminentProfile;S.P.PushtoMake;2A;48Vd.c.;ScrewTerm. Push-button Switch, vandal proof 16.2 mm 48 VDC 2 A 1 make contact (NO), MP0042/3, Bulgin Bulgin IP66, IP68 SP 面板安装 按钮开关 |
| Category |
Business
| Product Category | Pushbutton Switches | Factory Pack Quantity | 40 |
Compliance
| RoHS | RoHS Compliant | Tariff No | 85365080 |
Electrical
| Voltage Rating | 48 V | Switch Function | OFF - (ON) |
| Contact Resistance | :50mohm | Dielectric Strength | :2000VAC |
| Current Rating (Max) | 2 A | Current - Max/Contact | :2A |
| Insulation Resistance | :1000Mohm | Switch Function/Rating | :Off-(On) |
| Connector - Voltage Input | :Screw | Voltage - Supply (Vcc/Vdd) | :48V |
Mechanical
| Depth | :20.3mm | Weight | 0.685 |
| Diameter | :18mm | Material | :Stainless Steel |
| Contact Form | SPST | Actuator Type | Round |
| Mounting Style | Panel | Material Finish | :- |
| Panel Thickness | :6mm | Housing Material | Stainless Steel |
| Termination Style | Screw | Panel Cutout Shape | :16mm |
| Actuator Style/Size | :Dome | Number of Positions | :100000 |
| Color - Actuator/Cap | :Chrome | Switch Actuation Level | :Dome |
| Contact Layout, Typical | :SPST | ||
Product Info
| Series | :Prominent Button | ||
Environmental
| Switching Cycles | :1000000 | Operating Temperature | :55°C |
