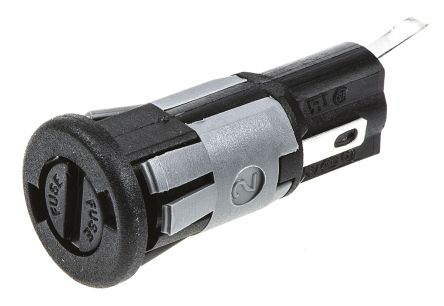

FX0367/2
| Manufacturer | |
| Description | Fuse Holders 5 x 20mm SNAP FIT PANEL 2.0-3.0mm FUSE HLDR CART 250V 10A PNL MNT Round bayonet cap fuseholder,2-3mm FUSE HOLDER, ROUND, 20X5MM Bulgin FX0367 系列 16A 槽式帽盖 面板固定熔断器座，适用于5 x 20mm熔断器, PC2 Fuse Holder 5 x 20mm SNAP FIT PANEL 2.0-3.0mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Fuse Holders | Product Category | Fuse Holders |
| Standard Package | 1 | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85363010 | Protection | PC2 |
| Approval Agency | :UL & CSA | ||
Electrical
| Voltage | 250V | Voltage Rating | 250 V |
| Number of Poles | 1 | Voltage - Working | :250V |
| Contact Resistance | :10mohm | Voltage - Breakdown | :7kV |
| Current Rating (Max) | 10 A | Insulation Resistance | :100Mohm |
| Load Side Connections Per Pole | :Solder Lug | ||
Mechanical
| Weight | 0.006 | Body Material | PET |
| Mounting Type | Panel Mount | Terminal Type | :0.8 x 2.8mm |
| Contact Finish | Silver | Mounting Style | Panel |
| Fuseholder Type | Holder | Panel Thickness | :2.0mm |
| Contact Material | Brass | Termination Style | Solder Lug |
| Depth Behind Panel | :40.0mm | Panel Cutout Dimensions | :12.8mm |
Product Info
| Style | Slotted | Series | FX0 |
| Fuse Size | 5mm x 20mm | Fuse Type | Cartridge |
| Number of Circuits | 1 | Number of Batteries Included | :1 |
| For Use With/Related Products | 5mm x 20mm | ||
Environmental
| Operating Temperature | - 20 C to + 85 C | ||
