EXP-A911/05/S
| Manufacturer | |
| Description | Standard Circular Connector 5 POLE FLEX SOCKET ATEX ZONE 2 & 22 CONN PLUG 5POS CABLE SKT Connector: circular; plug; female; PIN:5; EXPlora; Contacts: brass |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Standards | ATEX Ex |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 18A |
Mechanical
| Weight | 0.15 kg | Packaging | Bulk |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Mounting Type | Free Hanging (In-Line) |
| Cable Diameter | 20...22mm | Connector Type | Plug, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Free Hanging | Shell Material | Plastic |
| Locking Feature | threaded joint, internal thread | Contact Material | brass |
| Package Quantity | 10 | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Threaded | Number of Contacts | 5 |
| Number of Positions | 5 | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | ||
Product Info
| Spg | 10 | Series | EXP |
| Features | Cable Clamp | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Ingress Protection | IP68 - Dust Tight, Waterproof | Operating Temperature | -20°C ~ 55°C |
Documents & Media
Similar Parts

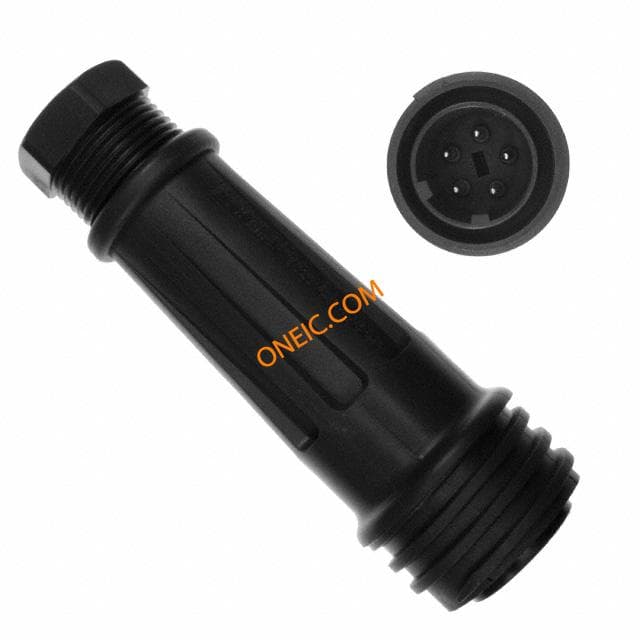

EXP-0921/05/P
Bulgin
Standard Circular Connector 5 POLE IN-LINE PLUG ATEX ZONE 2 & 22 CONN RCPT 5POS IN-LINE PIN Flex Cable recptacle, 5 way pin contacts FLEXCABLERECPT,5WPINS Connector: circular; plug; male; PIN:5; EXPlora; Contacts: brass Bulgin EXP 系列 5路 电缆安装 直向 连接器 插头 , 公触点
EXP-0990
Bulgin
Standard Circular Connector SEALING CAP HVY DUTY ATEX ZONE 2 & 22 CONN CAP SEALING FOR EXP-0911 Sealing cap for Flex plug SEALING CAP, EXP-0911 SEALINGCAPFORFLEXPLUG Protection cover; threaded joint, external thread; EXPlora; IP68 Bulgin EXP 系列 插座 IP68 防尘盖

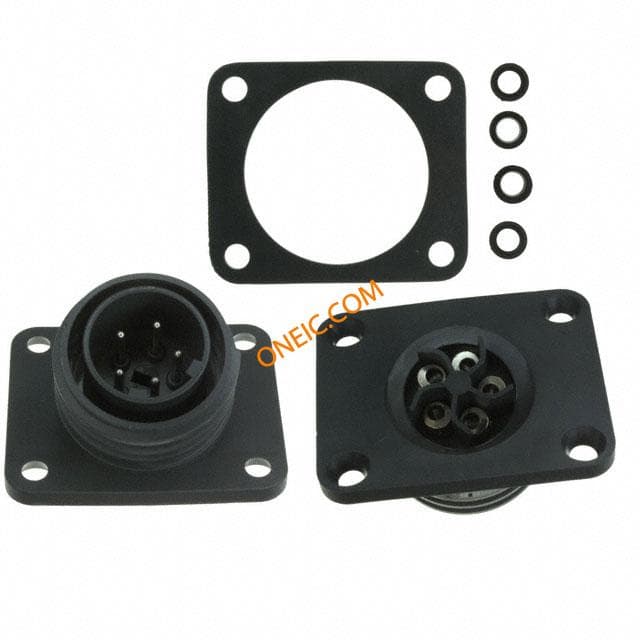

EXP-0941/05/P
Bulgin
Standard Circular Connector 5 P FLANGE MNT PLUG ATEX ZONE 2 & 22 CONN RCPT 5POS PNL MNT PIN Bulkhead connector, 5 pole pin PLUG, BULKHEAD, 5WAY BULKHEADCONNECTOR,5WPIN Connector: circular; socket; male; PIN:5; EXPlora; Contacts: brass Bulgin EXP 系列 5路 面板安装 直向 连接器 插头 , 公触点
EXP-A980
Bulgin
Standard Circular Connector GLAND PACK EXP-A ATEX ZONE 2 & 22 CABLE GLAND PACK 3/PKG Gaskets set; EXPlora; IP68; 14÷20mm
EXP-A921/05/P
Bulgin
Standard Circular Connector 5 POLE IN-LINE PLUG ATEX ZONE 2 & 22 CONN RCPT 5POS IN-LINE PIN Connector: circular; plug; male; PIN:5; EXPlora; Contacts: brass

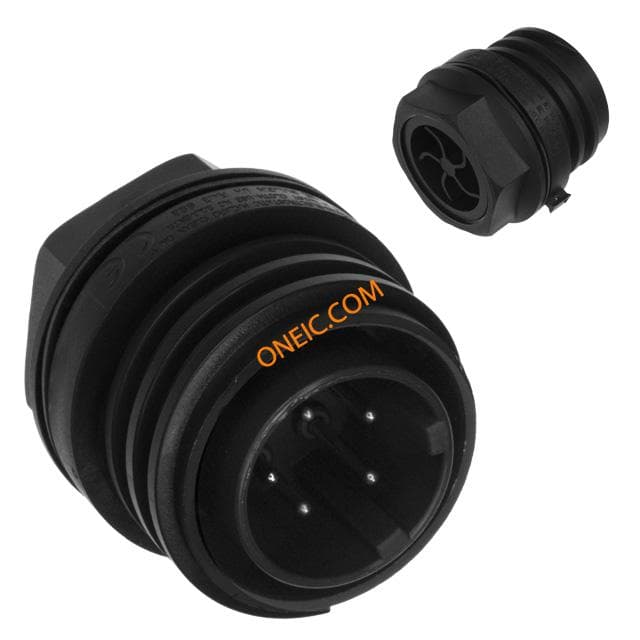

EXP-0931/05/P
