EXP-0941/10/P
| Manufacturer | |
| Description | Standard Circular Connector 10 P FLANGE MNT PLUG ATEX ZONE 2 & 22 CONN RCPT 10POS PNL MNT PIN Bulkhead connector, 10 pole pin BULKHEADCONN,10WPIN Connector: circular; socket; male; PIN:10; EXPlora; Contacts: brass Bulgin EXP 系列 10路 面板安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | RoHS Compliant | Standards | ATEX Ex |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 10 A |
Mechanical
| Weight | 0.1 kg | Outline | 50mm |
| Packaging | Bulk | Shell Size | 50mm |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Contact Type | 公插 |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Male Pins |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | threaded joint, external thread | Contact Material | Brass |
| Housing Material | PET | Package Quantity | 10 |
| Termination Rows | 螺钉拧紧 | Connector - Cable | socket |
| Termination Style | Screw | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Threaded | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 0.75...2mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | ||
Product Info
| Spg | 10 | Gender | Male |
| Series | Buccaneer 900 | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
| Output Configuration | Panel Mount, Flange | ||
Environmental
| Seal Rating | IP68 | Mechanical Life | New Technology: Cutting edge technology for the newest designs. |
| Ingress Protection | IP 68 | Operating Temperature | -20°C ~ 55°C |
Documents & Media
Similar Parts
EXP-0980
Bulgin
Standard Circular Connector GLAND PACK EXP-0 ATEX ZONE 2 & 22 CABLE GLAND - EXP-0911&0921 3PC Gland pack for EXP-09 types GLANDPACK, 7-13MM Gaskets set; EXPlora; IP68; 7÷13mm Bulgin EXP 系列 IP68 防尘盖
EXP-0992
Bulgin
Standard Circular Connector SEALING CAP HVY DUTY ATEX ZONE 2 & 22 CONN CAP SEALING EXP-0931/0941 Sealing cap for Chassis connector SEALING CAP, EXP-0931/0941 CAPFORCHASSISCONNECTOR Protection cover; threaded joint, internal thread; EXPlora; IP68 Bulgin EXP 系列 IP68 防尘盖
EXP-A911/10/S
Bulgin
Standard Circular Connector 10 POLE FLEX SOCKET ATEX ZONE 2 & 22 CONN PLUG 10POS CABLE SKT Connector: circular; plug; female; PIN:10; EXPlora; Contacts: brass

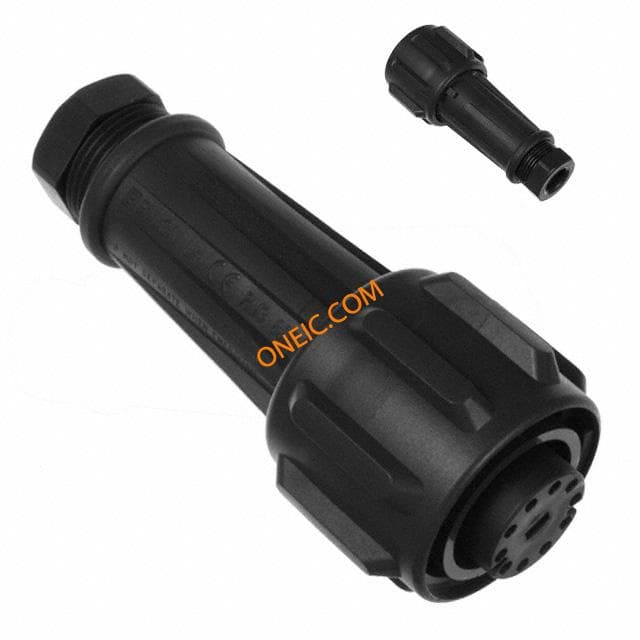

EXP-0911/10/S
