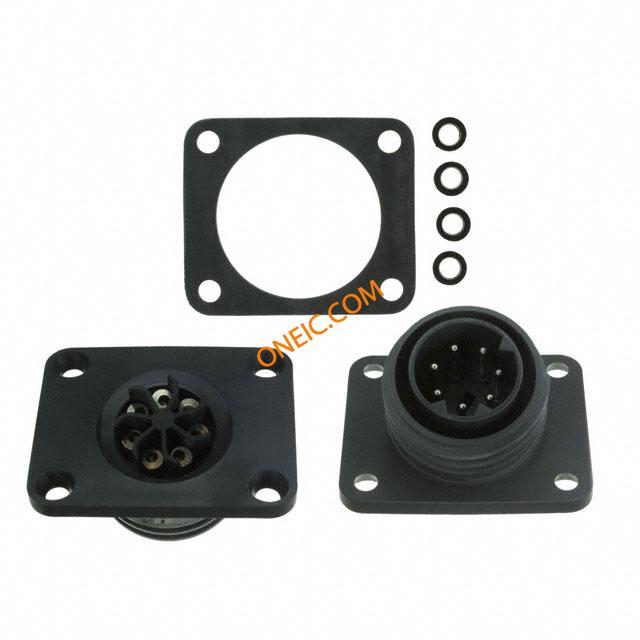

EXP-0941/07/P
| Manufacturer | |
| Description | Standard Circular Connector 7 P FLANGE MNT PLUG ATEX ZONE 2 & 22 CONN RCPT 7POS PNL MNT PIN Bulkhead connector, 7 pole pin BULKHEADCONNECTOR,7WPIN Connector: circular; socket; male; PIN:7; EXPlora; Contacts: brass Bulgin EXP 系列 7路 面板安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Standards | ATEX Ex |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 430VAC/DC | Current Rating (Max) | 16A |
Mechanical
| Weight | 0.1 kg | Outline | 50mm |
| Packaging | Bulk | Shell Size | 50mm |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Screw | Contact Type | 公插 |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Male Pins |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Plastic |
| Locking Feature | threaded joint, external thread | Contact Material | Brass |
| Housing Material | PET | Package Quantity | 10 |
| Termination Rows | 螺钉拧紧 | Connector - Cable | socket |
| Termination Style | Screw | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 7 |
| Number of Positions | 7 | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | ||
Product Info
| Spg | 10 | Gender | Male |
| Series | EXP | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 55°C | ||
