点击放大查看

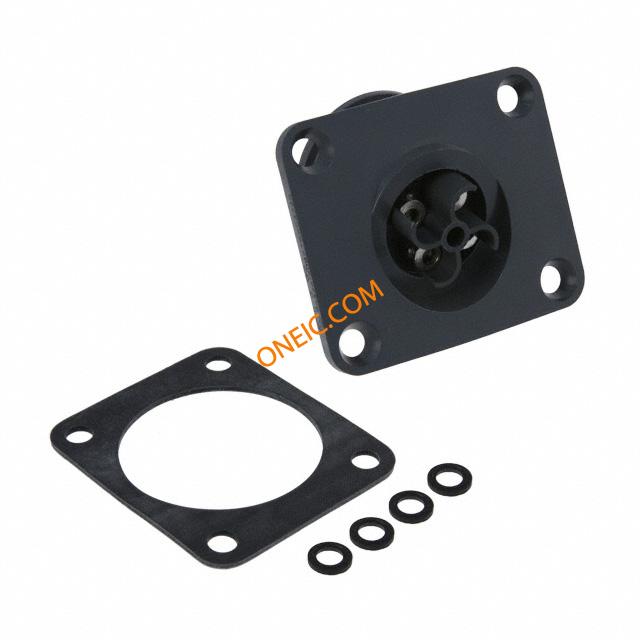

EXP-0941/04/S
| Manufacturer | |
| Description | Standard Circular Connector 4 P FLANGE MNT SKT ATEX ZONE 2 & 22 CONN RCPT 4POS PNL MNT SKT Bulkhead connector, 4 pole socket SOCKET, BULKHEAD, 4WAY BULKHEADCONNECTOR,4WSKT Connector: circular; socket; female; PIN:4; EXPlora; nickel plated Bulgin EXP 系列 4路 面板安装 直向 连接器 插座 , 母触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Standards | ATEX Ex |
| Tariff No | 85366990 | Approval Agency | :ATEX Zone 2 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 18A |
Mechanical
| Weight | 0.09 | Packaging | Bulk |
| Shell Size | 50mm | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Screw |
| Mounting Type | Panel Mount, Flange | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Nickel | Fastening Type | Threaded |
| Mounting Style | Panel | Shell Material | Plastic |
| Insertion Angle | :- | Locking Feature | threaded joint, external thread |
| Contact Material | Brass | Housing Material | PET |
| Package Quantity | 10 | Connector - Cable | socket |
| Termination Style | Screw | 1st Contact Gender | Female |
| Mating Orientation | Threaded | Number of Contacts | 4 |
| Contact Termination | :Screw | Number of Positions | 4 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | 1st Connector Mounting Type | :Panel |
Product Info
| Spg | 10 | Gender | Female |
| Series | EXP | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 55°C | ||
Documents & Media
Similar Parts
EXP-0980
Bulgin
Standard Circular Connector GLAND PACK EXP-0 ATEX ZONE 2 & 22 CABLE GLAND - EXP-0911&0921 3PC Gland pack for EXP-09 types GLANDPACK, 7-13MM Gaskets set; EXPlora; IP68; 7÷13mm Bulgin EXP 系列 IP68 防尘盖
EXP-0911/04/P
Bulgin
Standard Circular Connector 4 POLE FLEX PLUG ATEX ZONE 2 & 22 CONN PLUG 4POS CABLE PIN Flex Cable Plug, 4 way pin contacts PLUG, FLEX, 4WAY FLEXCABLEPLUG,4WPINS Connector: circular; plug; male; PIN:4; EXPlora; Contacts: brass Bulgin EXP 系列 4路 电缆安装 直向 连接器 插头 , 公触点

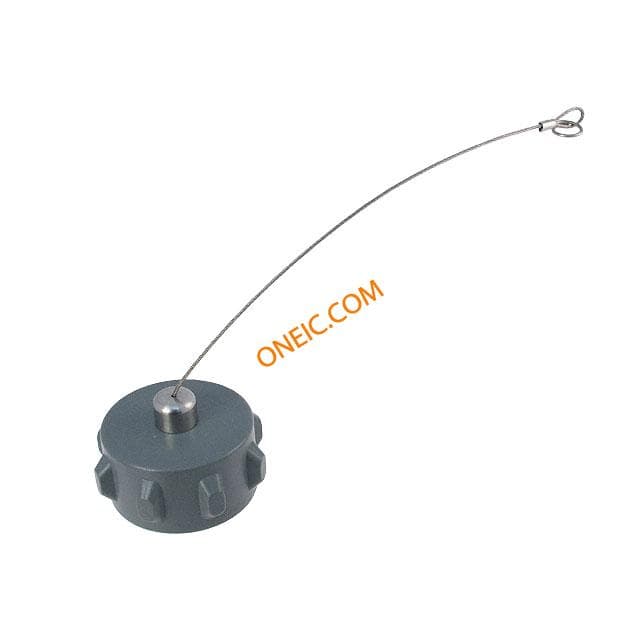

EXP-0992
