EXP-0911/05/P
| Manufacturer | |
| Description | Standard Circular Connector 5 POLE FLEX PLUG ATEX ZONE 2 & 22 CONN PLUG 5POS CABLE PIN Flex Cable Plug, 5 way pin contacts PLUG, FLEX, 5WAY CONN PLUG 5POS INLINE PIN FLEXCABLEPLUG,5WPINS Connector: circular; plug; male; PIN:5; EXPlora; Contacts: brass Bulgin EXP 系列 5路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Standards | ATEX Ex |
| Tariff No | 85366990 | Approval Agency | :ATEX Zone 2 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 18A |
Mechanical
| Weight | 0.15 | Packaging | Bulk |
| Shell Size | 50mm | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Cable Diameter | 13...15mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Shell Material | Plastic | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Material - Body | :Polyester |
| Contact Material | Brass | Housing Material | PET |
| Package Quantity | 10 | Connector - Cable | plug |
| Termination Style | Solder | 1st Contact Gender | Male |
| Mating Orientation | Threaded | Number of Contacts | 5 |
| Contact Termination | :Screw | Number of Positions | 5 |
| Shell Size - Insert | :- | Shell Material, Finish | Polyester |
| Wire Gauge or Range - mm2 | 2.5...4mm2 | Contact Material - Plating | nickel plated |
| Material - Housing & Prism | polyester | 1st Connector Mounting Type | :Cable |
Product Info
| Spg | 10 | Gender | Male |
| Series | EXP | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 55°C | ||
Documents & Media
Similar Parts
EXP-0921/05/S
Bulgin
Standard Circular Connector 5 POLE IN-LINE SKT ATEX ZONE 2 & 22 CONN RCPT 5POS IN-LINE SKT Flex Cable recptacle, 5 way skt contacts SOCKET, FLEX, INLINE, 5WAY FLEXCABLERECPT,5WSKTS Connector: circular; plug; female; PIN:5; EXPlora; Contacts: brass Bulgin EXP 系列 5路 电缆安装 直向 连接器 插座 , 母触点
EXP-0931/05/S
Bulgin
Standard Circular Connector 5 P PANEL MNT SKT ATEX ZONE 2 & 22 CONN RCPT 5POS JAM NUT SKT Chassis connector, 5 pole socket CHASSISCONNECTOR,5WSKT Connector: circular; socket; female; PIN:5; EXPlora; nickel plated Bulgin EXP 系列 5路 面板安装 直向 连接器 插座 , 母触点
EXP-0980
Bulgin
Standard Circular Connector GLAND PACK EXP-0 ATEX ZONE 2 & 22 CABLE GLAND - EXP-0911&0921 3PC Gland pack for EXP-09 types GLANDPACK, 7-13MM Gaskets set; EXPlora; IP68; 7÷13mm Bulgin EXP 系列 IP68 防尘盖

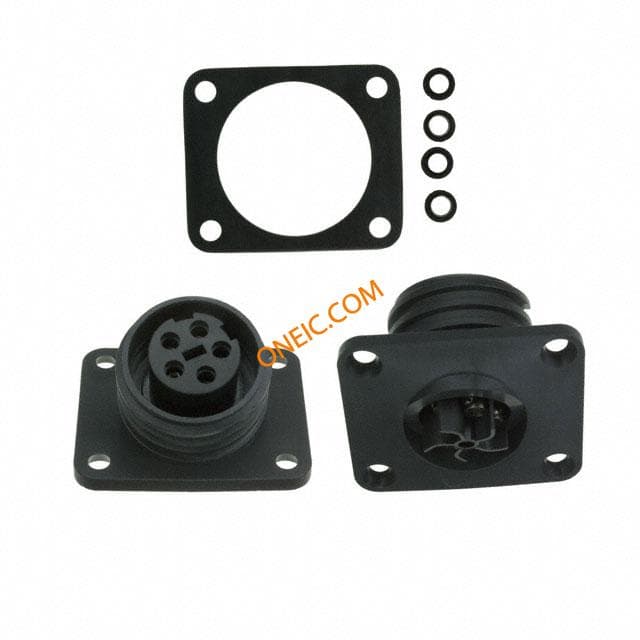

EXP-0941/05/S
Bulgin
Standard Circular Connector 5 P FLANGE MNT SKT ATEX ZONE 2 & 22 CONN RCPT 5POS PNL MNT SKT Bulkhead connector, 5 pole socket SOCKET, BULKHEAD, 5WAY BULKHEADCONNECTOR,5WSKT Connector: circular; socket; female; PIN:5; EXPlora; nickel plated Bulgin EXP 系列 5路 面板安装 直向 连接器 插座 , 母触点

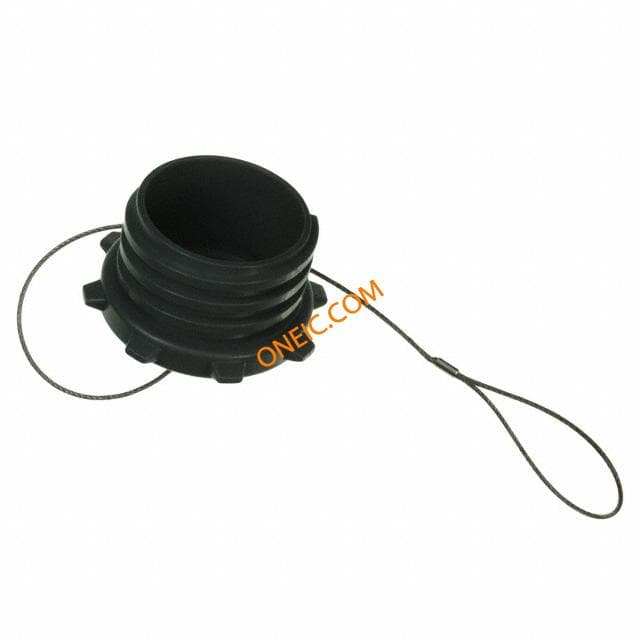

EXP-0990
