EXP-0911/03/P
| Manufacturer | |
| Description | Standard Circular Connector 3 POLE FLEX PLUG ATEX ZONE 2 & 22 CONN PLUG 3POS CABLE PIN Flex Cable Plug, 3 way pin contacts PLUG, FLEX, 3WAY CONN PLUG 3POS INLINE PIN FLEXCABLEPLUG,3WPINS Connector: circular; plug; male; PIN:3; EXPlora; Contacts: brass Bulgin EXP 系列 3路 电缆安装 直向 连接器 插头 , 公触点 |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 10 |
Compliance
| RoHS | Compliant | Standards | ATEX Ex |
| Tariff No | 85366990 | Approval Agency | :ATEX Zone 2 |
| Material Flammability Rating | UL94V-0 | ||
Electrical
| Voltage Rating | 600VAC/DC | Current Rating (Max) | 18A |
Mechanical
| Weight | 0.15 | Packaging | Bulk |
| Shell Size | 50mm | Orientation | Keyed |
| Shell Style | Plug | Termination | Screw |
| Mounting Type | Free Hanging (In-Line) | Cable Diameter | 13...15mm |
| Connector Type | Plug, Male Pins | Contact Finish | Nickel |
| Fastening Type | Threaded | Mounting Style | Free Hanging |
| Shell Material | Plastic | Insertion Angle | :- |
| Locking Feature | threaded joint, internal thread | Contact Material | Brass |
| Housing Material | PET | Package Quantity | 10 |
| Connector - Cable | plug | Termination Style | Solder |
| 1st Contact Gender | Male | Mating Orientation | Threaded |
| Number of Contacts | 3 | Contact Termination | :Screw |
| Number of Positions | 3 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyester | Wire Gauge or Range - mm2 | 2.5...4mm2 |
| Contact Material - Plating | nickel plated | Material - Housing & Prism | polyester |
| 1st Connector Mounting Type | :Cable | ||
Product Info
| Spg | 10 | Gender | Male |
| Series | EXP | Product Type | Connectors |
| Adapter Series | EXPlora | Number of Units | 1 |
Environmental
| Seal Rating | IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | -20°C ~ 55°C | ||
Documents & Media
Similar Parts
EXP-0931/03/S
Bulgin
Standard Circular Connector 3 P PANEL MNT SKT ATEX ZONE 2 & 22 CONN RCPT 3POS JAM NUT SKT Chassis connector, 3 pole socket SOCKET, CHASSIS, 3WAY CHASSISCONNECTOR,3WSKT Connector: circular; socket; female; PIN:3; EXPlora; nickel plated Bulgin EXP 系列 3路 面板安装 直向 连接器 插座 , 母触点
EXP-0980
Bulgin
Standard Circular Connector GLAND PACK EXP-0 ATEX ZONE 2 & 22 CABLE GLAND - EXP-0911&0921 3PC Gland pack for EXP-09 types GLANDPACK, 7-13MM Gaskets set; EXPlora; IP68; 7÷13mm Bulgin EXP 系列 IP68 防尘盖
EXP-0921/03/S
Bulgin
Standard Circular Connector 3 POLE IN-LINE SKT ATEX ZONE 2 & 22 CONN RCPT 3POS IN-LINE SKT Flex Cable recptacle, 3 way skt contacts SOCKET, FLEX, INLINE, 3WAY FLEXCABLERECPT,3WSKTS Connector: circular; plug; female; PIN:3; EXPlora; Contacts: brass Bulgin EXP 系列 3路 电缆安装 直向 连接器 插座 , 母触点
EXP-0990
Bulgin
Standard Circular Connector SEALING CAP HVY DUTY ATEX ZONE 2 & 22 CONN CAP SEALING FOR EXP-0911 Sealing cap for Flex plug SEALING CAP, EXP-0911 SEALINGCAPFORFLEXPLUG Protection cover; threaded joint, external thread; EXPlora; IP68 Bulgin EXP 系列 插座 IP68 防尘盖

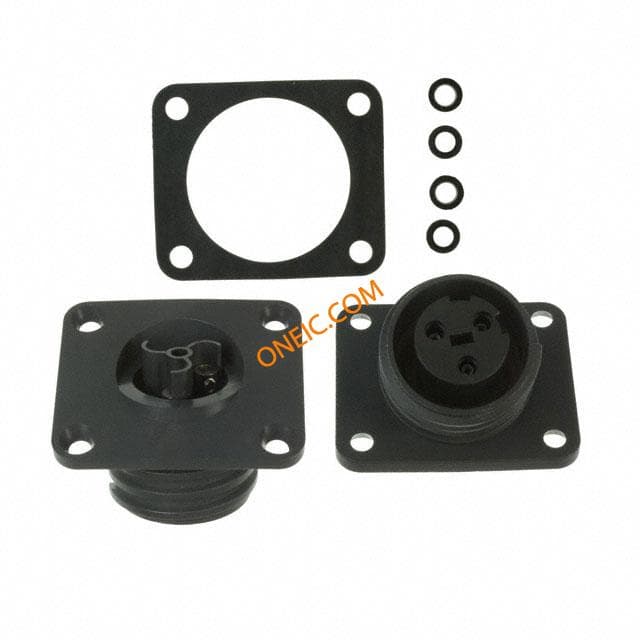

EXP-0941/03/S
