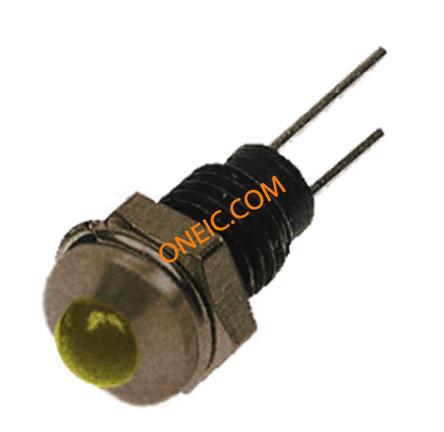

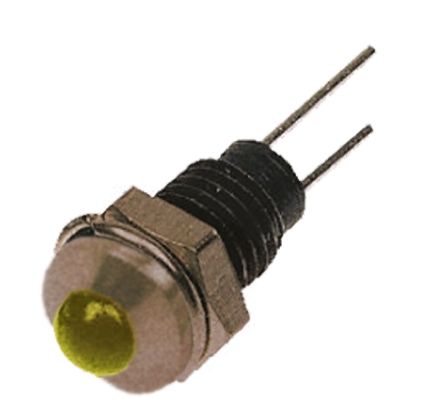

DX1118/YL
| Manufacturer | |
| Description | 6.1mm yellow LED satin chrome prominent Bulgin 4mm Prominent, Yellow LED Panel Mount Indicator, Lead Wires, 2V LED INDICATOR, 4MM, AMB Bulgin 4 mm 凸型 黄色 LED 面板安装 指示器, 引线接端 6.1mm安装孔尺寸, 2 V |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85414010 | ||
Electrical
| Lamp Type | LED | Luminous Flux | 2.5 mcd @ 10mA |
| Voltage Rating | 2 V | Voltage - Supply | :2.1V |
| LED Forward Voltage | :2V | Current Rating (Max) | 20 mA |
| Power Dissipation (Max) | :70mW | Current - Dark (Id) (Max) | :20mA |
| Voltage - Peak Reverse (Max) | :3V | Current - Peak Pulse (8/20us) | :25mA |
| Current - DC Forward (If) (Max) | :20mA | ||
Mechanical
| Length | 20 mm | Weight | 0.0016 |
| Diameter | :7.6mm | LED Color | :Yellow |
| Frame Type | Prominent | Light Color | Yellow |
| Termination | Lead Wires | Thread Size | :M6 |
| Pitch - Post | :0.75mm | Housing Color | Chrome |
| Mounting Type | :Panel | Material Finish | :- |
| Size / Dimension | :4mm | Diameter - Outside | :7.6mm |
| Mounting Hole Diameter | 6.1mm | ||
Product Info
| Type | Panel Mount | Lamp/Magnifier Type | 4 mm |
Environmental
| Operating Temperature | :80°C | Luminous Flux @ Current/Temperature | :2.5mcd |
