14192
| Manufacturer | |
| Description | CONN HEADER RT ANG 5POS PCB Adaptor Lead; PCB; PCB header right angle 5; 2.54 mm; 1.5 to 480 Mbs; 12.7 mm Firewire Connectors 5P PCB HEADER R/A Conn Wire to Board HDR 5 POS 2.54mm Solder RA Thru-Hole HEADER, RIGHT ANGLE, 5WAY AdaptorLead,PCB;PCBheaderrightangle5;2.54mm;1.5to480Mbs;12.7mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | IEEE 1394 Firewire Accessories | Other Names | 708-1029 |
| Product Category | Firewire Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | SVHC | :No SVHC (19-Dec-2012) |
| Tariff No | 85369010 | Material Flammability Rating | UL 94 V-0 |
Electrical
| Range deg/s | :BULGIN - Buccaneer Series | Voltage Rating | :30V |
| Voltage - Supply | USB | Voltage - Working | :30V |
| Contact Resistance | :10mohm | Current Rating (Max) | 1 A |
Mechanical
| Color | White | Pitch | 0.100" (2.54mm) |
| Weight | 0.0003 | Material | :Polycarbonate |
| Packaging | Bulk | Termination | Solder |
| Contact Type | Male Pin | Lead Spacing | :2.54mm |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Unshrouded |
| Contact Finish | Gold | Fastening Type | Friction Lock |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Copper Alloy | Termination Style | Solder |
| Number of Contacts | 5 | Contact Termination | :Through Hole Vertical |
| Number of Positions | 5 | Contact Finish Thickness | 30µin (0.76µm) |
| Shell Size - Insert (Convert To) | 5 | ||
Product Info
| Gender | Male | Features | Header mates with PX0419 |
| Number of Positions Loaded | All | ||
Environmental
| Mating Cycles | :1000 | Operating Temperature | 0 C to + 70 C |
Documents & Media
PDF Document
PDF Document
Similar Parts

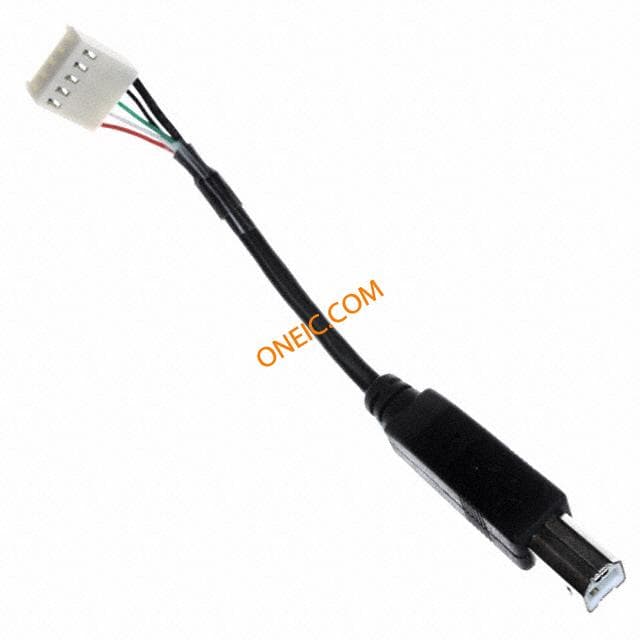

14194
