12734/1
| Manufacturer | |
| Description | Standard Circular Contacts CONTACT INSERT 8 PIN CONN HSNG INSERT 8POS PIN Male Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Standard Circular Connector CONTACT INSERT 8 PIN Conn Mini Buccaneer PIN 8 POS Solder ST Cable Mount 8 Terminal 1 Port CARRIER, PIN, 8WAY Bulgin 8路 公 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C |
| Category |
Business
| Product Category | Standard Circular Connector | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | Compliant | Tariff No | 85369010 |
Electrical
| Voltage Rating | 380 V | Voltage - Working | :380V |
| Contact Resistance | :5mohm | Current Rating (Max) | 10 A |
Mechanical
| Weight | 0.002 | Material | :Black Nylon |
| Packaging | Bulk | Wire Gauge | :0.2m² |
| Orientation | Keyed | Contact Type | Solder Cup |
| Connector Type | Insert for Male Contacts | Contact Finish | :Gold |
| Insertion Angle | :- | Contact Material | :Copper |
| Housing Material | Polyamide (PA) | 1st Contact Gender | Pin |
| Number of Contacts | 8 | Contact Termination | :Crimp / Solder |
| Number of Positions | 8 | Shell Size - Insert | :- |
| Shell Material, Finish | Polyamide | Wire Gauge or Range - mm2 | :1m² |
| Diameter - Outside, Non-Expanded | :7mm | ||
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | Buccaneer | Features | Insert Only, Requires Shell |
| Accessory Type | Contact Carrier Inserts | For Use With/Related Products | Mini Buccaneer Connector |
Environmental
| NEMA Frame Size | :IP68 | Ingress Protection | IP68 - Dust Tight, Waterproof |
| Operating Temperature | +70°C | ||
Documents & Media
Similar Parts

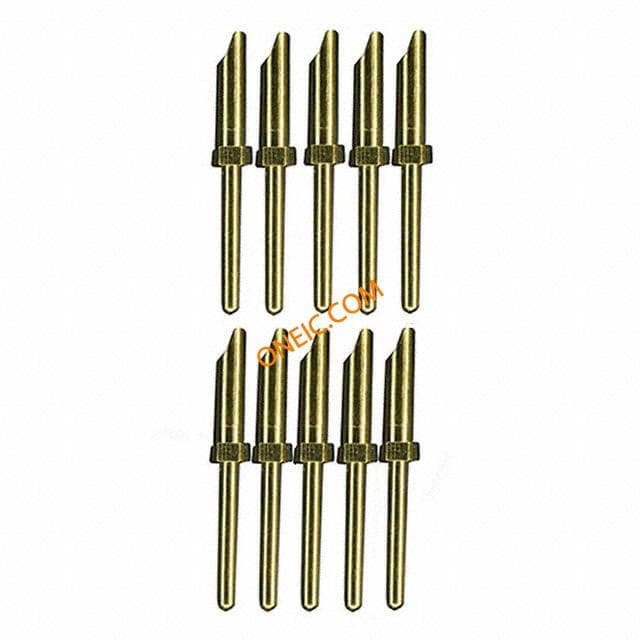

SA3148/1
Bulgin
Standard Circular Contacts GOLD PLATED PIN SOLD 1 = 1 PKT of 10/pcs CONT PIN SOLDER 20-24AWG 1=10PC Contact PIN Solder ST Cable Mount CIRCULAR CONTACT, PIN, 24-20 AWG, SOLDER
PX0800/07
Bulgin
Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Connector Accessories Circular Body With Cable Gland Polyamide
PX0803
Bulgin
Standard Circular Connector CHAS MT R/A BODY CONN HSNG INSERT SHELL PNL R/A Connector; Flux In-Line; Screw; lt 5; -20 to degC; Copper Alloy; Gold; UL94V-0 Connector Accessories Circular Body Polyamide BODY, CHASSIS, R/A Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0
PX0802
Bulgin
Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide BODY, CHASSIS Bulgin 连接器
PX0801
Bulgin
Standard Circular Connector IN-LINE CONN. BODY CONN HSNG INSERT SHELL INLINE IP68 compact inline coupler shell Connector Accessories Circular Body Polyamide CircularCableConnector;3.5to9mm;ULListed
PX0800
Bulgin
Standard Circular Connector FLEX CBL CON BODY CONN HSNG INSERT SHELL CABLE Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR SHELL, 26X61.5MM, POLYAMIDE CircularCableConnector;3.5to9mm;ULListed Bulgin Buccaneer 系列 直向 连接器
PX0805
Bulgin
Standard Circular Connector CHASSIS MT BODY CONN HSNG INSERT SHELL PNL MNT Industrial & Automation Circular Connector Connector Accessories Circular Body Polyamide CIRCULAR CHASSIS, POLYAMIDE Connector;FluxIn-Line;Screw;lt5;-20todegC;CopperAlloy;Gold;UL94V-0 Bulgin 连接器
12735/1
Bulgin
Standard Circular Contacts CONTACT INSERT 8 SOC CONN HSNG INSERT 8POS SKT Female Circular Connector Insert 8 Way For Use With Mini Buccaneer Connector Conn Mini Buccaneer SKT 8 POS Solder ST Cable Mount 8 Terminal 1 Port SOCKET, CARRIER, 8WAY Bulgin 8路 母 连接器插芯, 使用于Mini Buccaneer 连接器, -20 → +70 °C
12735
Bulgin
Standard Circular Connector CARRIER INSERT 8 SKT COLOR GRAY CONN HSNG INSERT 8POS SKT Conn Mini Buccaneer SKT 8 POS Crimp ST Cable Mount 8 Terminal 1 Port Contact,Crimp;20-24AWG;Female;ULRecognized

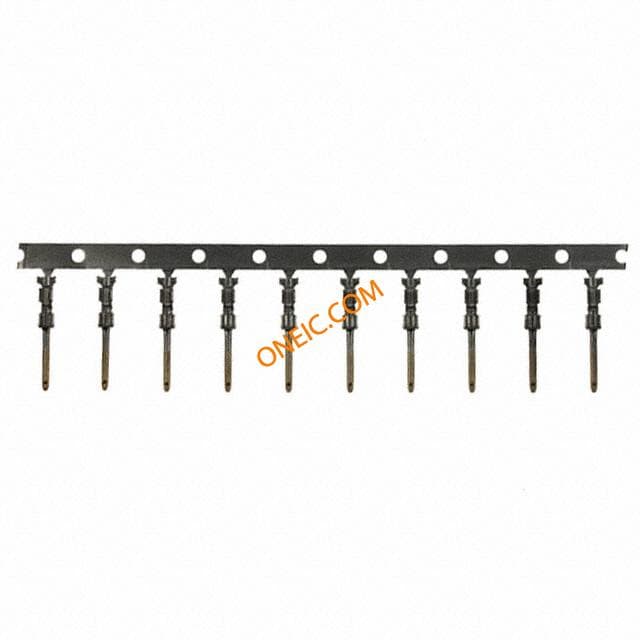

SA3148
