MF-MSMF020-2
| Manufacturer | |
| Description | PTC Resettable Fuse 80A 30V T/R Resettable Fuses 0.2A 30V 0.40ohm PTC Resettable Fuse 0.2A(hold) 0.4A(trip) 30V 80A 0.8W 0.06s 0.4Ohm SMD Solder Pad 1812 T/R PTC RESETTABLE .20A 30V 1812 Bourns 0.2A Surface Mount Resettable Fuse, 30 V Resettable Fuses - PPTC 0.2A 30V 0.40ohm FUSE, PTC RESET, 30V, 0.2A, SMD RESETTABLE FUSE Fuse;Resettable;80A;Sz4532;Dims0.186x0.134x0.043";SMT;30VDC;DCR0.4Ohms;PCB Fuse: PTC polymer; 200mA; Case:1812 Fuse, SMD 30 V 0.4 A, MF-MSMF020-2, Bourns Bourns 0.2A 表面固定可复位熔断器, 30 V Resettable Fuses - PPTC 0.2A 30V 0.40ohm AEC-Q200 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | MF-MSMF020-2CT | Product Category | Resettable Fuses |
| Standard Package | Tape & Reel, Cut Tape | Factory Pack Quantity | 1500 |
Compliance
| RoHS | RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Standards | ULRecognized,CSACertified |
| Tariff No | 85361010 | Approval Agency Marking | CSA/TUV/UL |
Electrical
| Resistance | 6 Ohms | Power - Rated | 0.8W |
| Voltage - Max | 30 VDC | NTC Thermistor | :PTC Resettable Fuse |
| Voltage Rating | 30 V | Current - Output | 400mA |
| Interrupt Output | 0.40A@+23°C | Resistance (Ohms) | 6Ω |
| Current - Hold (Ih) | 0.20A@+23°C | Current - Trip (It) | 0.4 A |
| DC Resistance (DCR) | 0.4Ohms | Current Rating (Max) | 80 A |
| Resistance Tolerance | 0.4 Ohm | Voltage - Input (Min) | 30 V |
| Voltage - Supply (Min) | 30V | Power Dissipation (Max) | 0.8 W |
| Delay Time - Propagation | 0.06@6A s | Current - Hold (Ih) (Max) | 0.2 A |
| Resistance - Initial (Ri) (Min) | 0.4Ω | Voltage - DC Reverse (Vr) (Max) | 30 V |
| Resistance - Post Trip (R1) (Max) | 6 Ohm | ||
Mechanical
| Size | 4532 | Depth | :0.685mm |
| Pitch | :4.73mm | Width | 3.41mm |
| Height | 1.1mm | Length | 4.73mm |
| Weight | 0.001 | Packaging | Reel |
| Termination | :SMD | Mounting Type | Surface Mount |
| Mounting Style | SMD/SMT | Package / Case | 1812 (4532 metric) |
| Length - Overall | 4.73(Max) | Material - Blade | Electroless Nickel Immersion Gold |
| Package Quantity | 50 | Primary Material | Resettable |
| Size / Dimension | 4.73 mm L x 3.41 mm W x 1.1 mm H | Termination Style | SMD/SMT |
| Number of Contacts | 2 | Wire Gauge or Range - AWG | Not Required |
| Material - Housing & Prism | :Epoxy polymer | ||
Product Info
| Spg | 50 | Type | PTC Resettable Fuses |
| Series | MF-MSMF | DELETED | Compliant |
| Fuse Type | :1812 [4532 Metric] | Manufacturer | MF-MSMFSeries |
| Number of Units | 5 | Application Specifics | Hard Disk Drives|PC Motherboards|... |
Environmental
| Time to Trip | 0.06s | Humidity Range | +85% |
| Reset Temperature | :6.0ohm | Operating Temperature | - 40 C to + 85 C |
| Temperature Coefficient | :23°C | Operating Temperature - Junction | 85C |
| Power Dissipation @ Temperature Rise | 0.8 W | ||
Documents & Media
Similar Parts

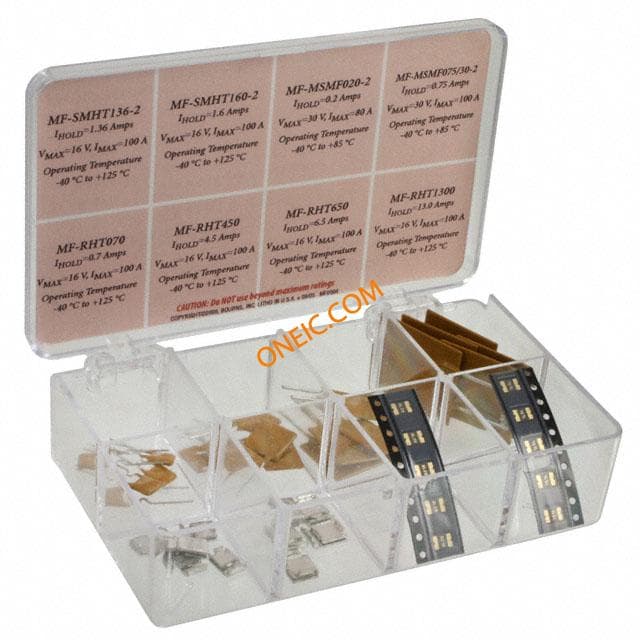

MF-AUTOLAB
