3386F-1-103TLF
| Manufacturer | |
| Description | Res Cermet Trimmer 10K Ohm 10% 1/2W 1(Elec)/1(Mech)Turn 8.38mm (9.53 X 9.53 X 10.41mm) Pin Thru-Hole Tube Res Cermet Trimmer 10K Ohm 10% 0.5W(1/2W) 1(Elec)/1(Mech)Turn 8.38mm (9.53 X 9.53 X 10.41mm) Pin Thru-Hole Tube TRIMMER 10K OHM 0.5W PC PIN 3386F top adj cermet trimmer,10K 10mm Trimmer Resistors - Through Hole 3/8 10Kohms 10% 0.5Watts Square TRIMMER, POT, 10K, 10%, 1TURN, TH 10MMS/TCERMETTRIM10K Trimmer Cermet 10 kOhm linear 500 mW, 3386F-1-103TLF, Bourns Bourns 3386F 系列 通孔 微调电阻器, 带 针接端, 10kΩ ±10%, 1/2W, ±100ppm/°C |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Trimmer Resistors - Single Turn | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | Lead free / RoHS Compliant | SVHC | :No SVHC (20-Jun-2013) |
| EU RoHS | Compliant | Tariff No | 85334010 |
| Rad Hardened | No | Military Standard | Not Required |
Electrical
| Tolerance | 10 % | Resistance | 10 KOhm |
| Element Type | Cermet | Power (Watts) | 0.5W, 1/2W |
| Power - Rated | 1/2 W | Voltage Rating | 300 V |
| Resistance (Ohms) | 10k | Contact Resistance | :1% |
| Voltage - Breakdown | :900V | Resistance Tolerance | 10kΩ |
| DC Resistance (DCR) (Max) | :10kohm | ||
Mechanical
| Depth | 9.53mm | Taper | Linear |
| Height | 10.41mm | Length | 9.53mm |
| Weight | 0.00076 | Diameter | Not Required mm |
| Packaging | Tube | Pin Diameter | :0.5mm |
| Mounting Type | Through Hole | Terminal Type | :PCB Terminals |
| Mounting Style | Through Hole | Rotation Angle | :310° |
| Shaft Diameter | 8.38 mm | Length - Overall | 9.53 mm |
| Size / Dimension | Square - 0.375" L x 0.375" W x 0.190" H (9.52mm x 9.52mm x 4.83mm) | Termination Style | Pin |
| Resistive Material | Cermet | ||
Product Info
| Type | Trimmer | Series | 3386 |
| DELETED | Compliant | Technology | Cermet |
| Failure Rate | Not Required | Product Type | Single Turn |
| Adjustment Type | Top Adjustment | Number of Turns | 1(Elec)|1(Mech) Turns |
Environmental
| Operating Temperature | -55 to 125 °C | Temperature Coefficient | ±100ppm/°C |
| Temperature Coefficient (Typ) | :100ppm/°C | ||
Documents & Media
Similar Parts
H-90
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-90 Potentiometer Tools & Hardware ADJUST. TOOL ADJUSTMENT TOOLS TRIMMING TOOL TrimmerTool,Adjustment;Tweeker;BldThk0.016in;BldW0.08in;L5in Tool: for potentiometers adjustment; Application:3319P-1 Adjusting tool, H-90, Bourns 微调面板安装适配器 127mm
$29.2862
Details
ACCTRITOB308-T000
Vishay / Spectrol
手工具 TRIMMER ADJUSTMENT TOOL Trimmer Ajustment Tool Designed To Adjust Trimmers Of All Sizes TUNING TOOL FLAT NYLON 5" TRIMMING TOOL, POTENTIOMETER TRIMMER ADJUSTMENT TOOL Adjustment screwdriver, ACCTRITOB308-T000, Vishay
$42.7516
Details

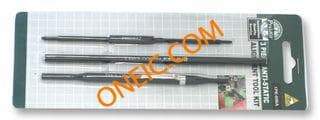

1PK-606A-F
