3292W-1-101LF
| Manufacturer | |
| Description | Res Cermet Trimmer 100 Ohm 10% 1/2W 25(Elec)Turn 2.29mm (9.53 X 3.81 X 11.05mm) Pin Thru-Hole Tube Trimmer Resistors - Through Hole 3/8 100ohms Sealed 10% Vertical Mount Res Cermet Trimmer 100 Ohm 10% 0.5W(1/2W) 25(Elec)Turn 2.29mm (9.53 X 3.81 X 11.05mm) Pin Thru-Hole Tube TRIMMER 100 OHM 0.5W PC PIN TRIMMER, POTENTIOMETER, 100 OHM 25TURN THRU HOLE Potentiometer: mounting; vertical, multiturn; 100Ω; 500mW; THT |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 50 |
Compliance
| RoHS | RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85334010 | ||
Electrical
| Tolerance | 10 % | Resistance | 100 Ohm |
| Element Type | Cermet | Power (Watts) | 0.5W, 1/2W |
| Power - Rated | 1/2 W | Resistance (Ohms) | 100 |
| Resistance Tolerance | :± 10% | DC Resistance (DCR) (Max) | :100ohm |
Mechanical
| Depth | 3.81 | Taper | Linear |
| Height | 11.05 | Weight | 0.00091 |
| Packaging | Tube | Size - Body | 9.53 x 9.53 x 3.8mm |
| Mounting Type | Through Hole | Shaft Diameter | 2.29 mm |
| Length - Overall | 9.53 | Package Quantity | 25 |
| Size / Dimension | 9.53 mm W x 9.53 mm L | Pitch - Connector | 2.54mm |
| Termination Style | Radial | Conductor Material | cermet |
| Resistive Material | Cermet | ||
Product Info
| Spg | 25 | Type | Trimmer |
| Technology | Cermet | Product Type | Multi-Turn |
| Control Method | vertical | Adjustment Type | Top Crossed |
| Characteristics | linear | Number of Turns | 25(Elec) Turns |
| Number of Units | 1 | Type Attributes | 3/8" |
Environmental
| Operating Temperature | -65 to 150 °C | Temperature Coefficient | ±100ppm/°C |
Documents & Media
Similar Parts

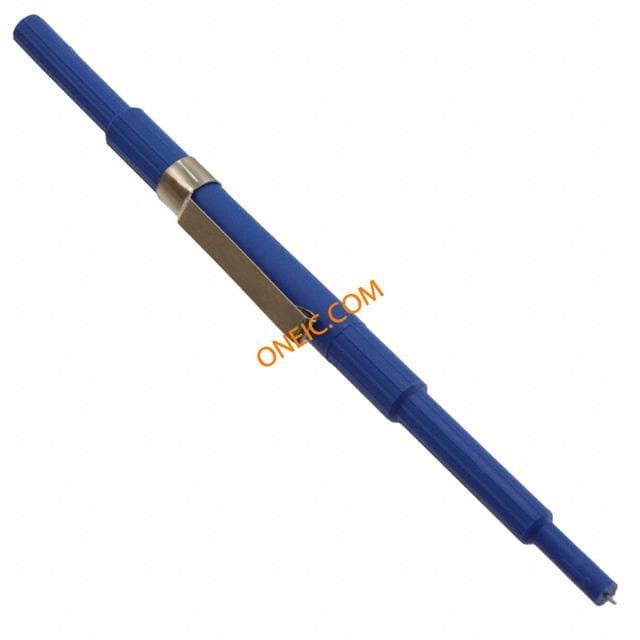

H-91
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-91 Potentiometer Tools & Hardware TRIMMER ADJUST TOOL Pocket Clip TrimmerTool,Adjustment;Tweeker;BldThk0.018in;BldW0.09in Tool: for potentiometers adjustment; Application:3214,3224 Adjusting tool, H-91, Bourns Bourns 微调电阻器

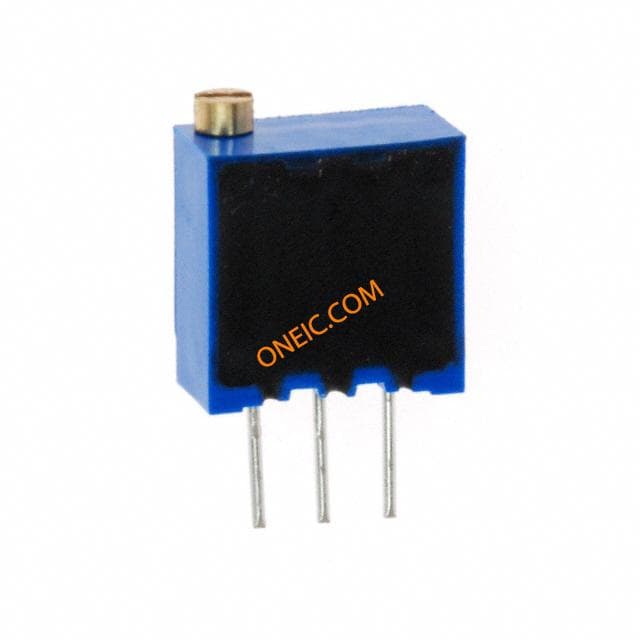

T93YA101KT20
