3006P-1-205LF
| Manufacturer | |
| Description | Res Cermet Trimmer 2M Ohm 10% 3/4W 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube Trimmer Resistors - Through Hole 2M 3/4 10% Sealed Multi Turn Res Cermet Trimmer 2M Ohm 10% 0.75W(3/4W) 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube TRIMMER 2M OHM 0.75W PC PIN 3006P side adj cermet trimmer,2M 19mm Tra TRIMMER, POT, 2MOHM, 10%, 15TURN, TH Trimmer;Cermet;Rest2Megohms;PCB;15Turns;Pwr-Rtg0.75W Trimmer Cermet 2 MOhm linear 750 mW, 3006P-1-205LF, Bourns Bourns 3006 系列 15 转 通孔 微调电阻器, 带 针接端, 2MΩ ±10%, 0.75W, ±100ppm/°C |
| Category |
Business
| Product | Trimmers | Product Category | Trimmer Resistors - Through Hole |
| Standard Package | Bulk | Factory Pack Quantity | 100 |
Compliance
| RoHS | RoHS Compliant By Exemption | SVHC | :No SVHC (16-Dec-2013) |
| EU RoHS | Compliant | Tariff No | 85331000 |
Electrical
| Tolerance | 10 % | Resistance | 2 MOhm |
| Resolution | Infinite | Element Type | Cermet |
| Power (Watts) | 0.75W, 3/4W | Power - Rated | 3/4 W |
| Resistance (Ohms) | 2M | Dielectric Strength | 1000VAC |
| Resistance Tolerance | 2000000Ω | Insulation Resistance | 1000Megohms |
| DC Resistance (DCR) (Max) | :2Mohm | ||
Mechanical
| Depth | 4.83mm | Taper | Linear |
| Height | 6.35mm | Length | 20.57mm |
| Torque | 5Oz./in. | Weight | 0.002 |
| Packaging | Tube | Termination | SolderablePins |
| Mounting Type | Through Hole | Mounting Style | PCB |
| Shaft Diameter | 2.36 mm | Length - Overall | 20.57 |
| Material - Blade | Cermet | Size / Dimension | 4.83 mm W x 19.05 mm L |
| Termination Style | Radial | Resistive Material | Cermet |
Product Info
| Type | Trimmer | Technology | Cermet |
| Product Type | Multi-Turn | Adjustment Type | Side Slot |
| Number of Turns | 15(Elec) Turns | ||
Environmental
| Switching Cycles | 200Cycles | Operating Temperature | -55 to 125 °C |
| Temperature Coefficient | ±100ppm/°C | Operating Temperature - Junction | +125°C |
Documents & Media
Similar Parts
H-91
bourns
ADJUSTMENT TOOL FOR TRIMPOT Adjustment Tools For Use On Most Trimmer Shafts/Rotors TUNING TOOL FLAT 5" Trimmer, pot. - adjustment tool H-91 Potentiometer Tools & Hardware TRIMMER ADJUST TOOL Pocket Clip TrimmerTool,Adjustment;Tweeker;BldThk0.018in;BldW0.09in Tool: for potentiometers adjustment; Application:3214,3224 Adjusting tool, H-91, Bourns Bourns 微调电阻器
H-83P
bourns
RETRO-FIT PANEL MOUNTS Customer Installed Panel Mount Unsealed RETRO FIT PANEL MNT HOLDER Potentiometer Tools & Hardware 3005/3006 ADAPTER PANEL MOUNT, POTENTIOMETER Adapter,Trimmer;Retro-FitMountingPanel;ThrdSz5/16In-32Unef Adapter; Body dim:22x9.53x9.53mm; dcutout:8mm Adapter for potentiometer 3005/3006, H-83P, Bourns

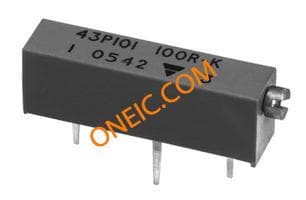

043P205
