8113-RC
| Manufacturer | |
| Description | Ind Common Mode Toroid 5mH 1KHz 8.9A Pin Common Mode Chokes Dual 5mH 1kHz 8.9A 22mOhm DCR Thru-Hole CHOKE COMM MODE W/HDR 5mH 8.9A CHOKE, 5MH, 8.9A CHOKE,COMMONMODE,5MH@1KHZ,0.022OHMDCRMAX |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85339000 | Rad Hardened | No |
| Military Standard | Not Required | ||
Electrical
| Current | 8.9A | Impedance | Not Required ohm |
| Inductance | 5 mH | Filter Type | Power Line |
| Range deg/s | :BOURNS - 8100 Series | Test Frequency | 0.001 MHz |
| Current Rating - DC | :8.9A | DC Resistance (DCR) | 22 mOhm Max |
| Voltage - Breakdown | 1.5kVrms | Current Rating (Max) | 8.9 A |
| DC Resistance (DCR) (Max) | :0.022ohm | Current - DC Forward (If) (Max) | 8900 mA |
| Resistance - Initial (Ri) (Min) | 22 mOhm | ||

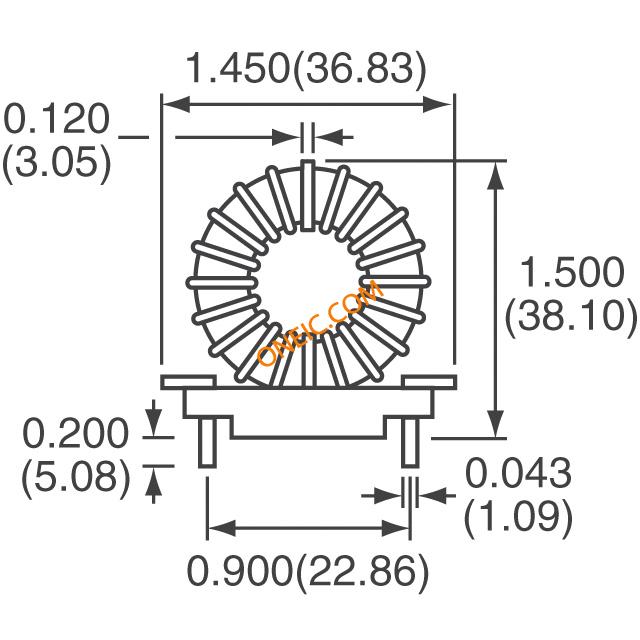

Mechanical
| Depth | 20.57 mm | Height | 38.1 mm |
| Weight | 0.045 | Diameter | Not Required mm |
| Packaging | Bulk | Lead Style | Pin |
| Height (Max) | 1.500" (38.10mm) | Lead Spacing | 22.86 mm |
| Mounting Type | Through Hole | Package / Case | Vertical, 4 PC Pin |
| Length - Overall | 36.83 mm | Size / Dimension | 1.450" L x 0.800" W (36.83mm x 20.32mm) |
| Dimensions - Overall | :36.83mm x 20.32mm x 38.1mm | ||
Product Info
| Type | Common Mode | DELETED | Compliant |
| Technology | Wirewound | Failure Rate | Not Required |
| Configuration | Dual | Number of Lines | 2 |
Environmental
| Operating Temperature | -55 to 105 °C | ||
