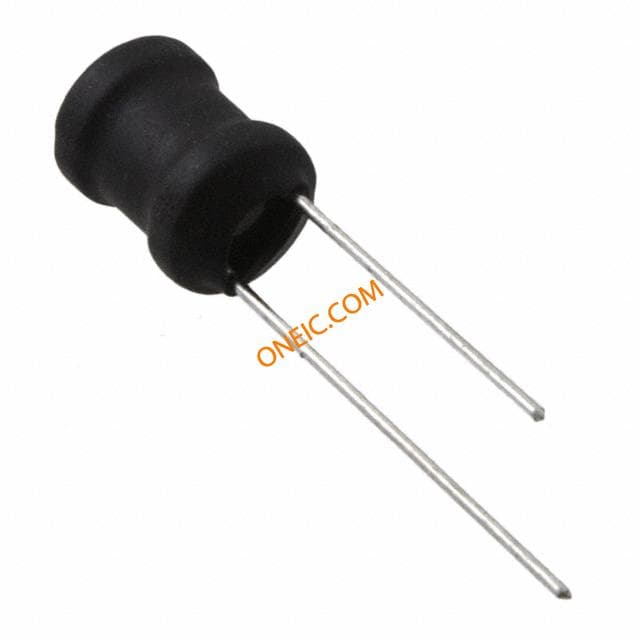

6000-680K-RC
| Manufacturer | |
| Description | Ind RF Choke Bobbin Core 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.36A RDL RF Choke Bobbin Core 68uH 10% 2.52MHz 30Q-Factor Ferrite 1.36A 210mOhm DCR RDL INDUCTOR HI CURRENT RADIAL 68UH RF CHOKE, 68UH, 1.36A, 10%, 4.9MHZ |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | Bulk | ||
Compliance
| RoHS | Lead free / RoHS Compliant | EU RoHS | Compliant |
| Tariff No | 85045095 | Rad Hardened | No |
| Military Standard | Not Required | ||
Electrical
| Q @ Freq | 30@2.52MHz | Impedance | Not Required ohm |
| Tolerance | 10 % | Inductance | 68 uH |
| Range deg/s | :BOURNS - 6000 Series | Test Frequency | 2.52MHz |
| Inductance Range | :± 10% | Current Rating - DC | :1.36A |
| DC Resistance (DCR) | 210 mOhm Max | Current Rating (Max) | 1.36 A |
| DC Resistance (DCR) (Max) | :0.21ohm | Frequency - Self Resonant | 4.9MHz |
| Current - DC Forward (If) (Max) | 1360 mA | Resistance - Initial (Ri) (Min) | 210 mOhm |
Mechanical
| Depth | Not Required mm | Height | 12.2 mm |
| Weight | 0 | Diameter | 9 mm |
| Packaging | Bulk | Shielding | Unshielded |
| Lead Style | Radial | Lead Spacing | 5 mm |
| Pitch - Post | 5 | Core Material | Ferrite |
| Mounting Type | Through Hole | Package / Case | Radial |
| Material - Core | Ferrite | Length - Overall | Not Required mm |
| Size / Dimension | 0.354" Dia (9.00mm) | Dimensions - Overall | :9mm x 12.2mm |
| Height - Seated (Max) | 0.480" (12.20mm) | ||
Product Info
| Type | RF Choke | DELETED | Compliant |
| Technology | Bobbin Core | Failure Rate | Not Required |
Environmental
| Operating Temperature | -55 to 105 °C | ||
