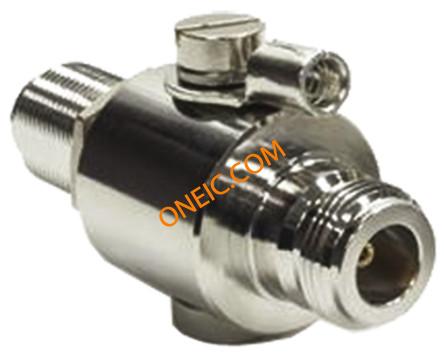

1977-25-A00
| Manufacturer | |
| Description | COAX, DC TO 7GHZ, N, FF, 190W Coax, DC to 7GHz, N type FF, 190W RF Connectors / Coaxial Connectors DC to 7GHz 190W Coax N-Type Female/Female SurgeSuppressor,Coax,DCto7GHz,N,FF,190W Bourns 1977 系列 300 V 直流 20kA 同轴浪涌保护器, 通孔安装, 64 x 26 (Dia.)mm |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Connectors | Standard Package | 10 |
Compliance
| RoHS | Compliant | Approval Agency | UL |
Electrical
| Impedance | 50 Ohms | Current - Surge | 20kA |
| Frequency - Max | 5 GHz | Voltage - Rated | 300 V 直流 |
| Voltage - Input (Min) | 300 V dc | Voltage - Continuous Operating (Max) (MCOV) | 200-300V |
Mechanical
| Depth | 26 (Dia.)mm | Length | 64mm |
| Weight | 0.28 lb (127.01g) | Packaging | Bulk |
| Orientation | Straight | Termination | Connector |
| Mounting Type | Panel Mount | Mounting Style | Connector |
| Locking Feature | Coaxial Surge Protector | Primary Material | SurgeSuppressor |
| Size / Dimension | 64 x 26 (Dia.)mm | ||
Product Info
| Type | 同轴浪涌保护器 | Series | 1977 |
| Function | Y | Manufacturer | 1977Series |
| For Use With/Related Products | IndustrialEquipment | ||
Environmental
| Ingress Protection | IP65 | Operating Temperature | +85°C |
