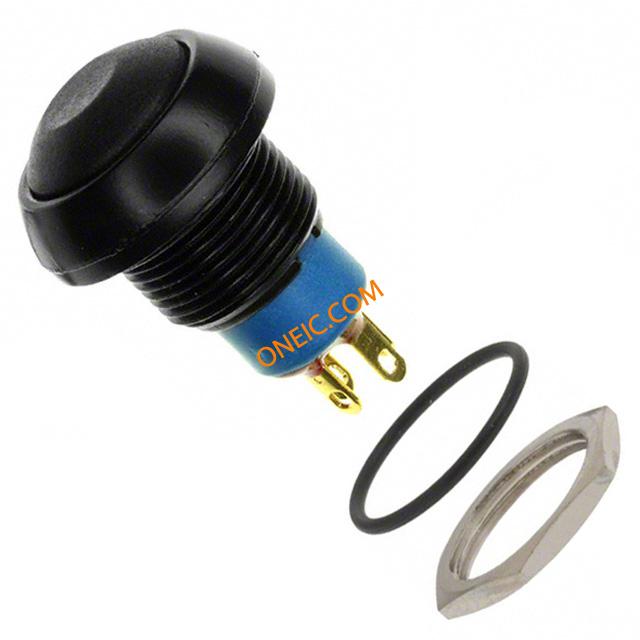

IPR5SAD2
| Manufacturer | |
| Description | SWITCH PUSH SPDT 0.5A 48V Switch Push Button N.O./N.C. DPST Round Plunger 2A 125VAC 24VDC Momentary Contact Solder Lug Panel Mount Switch;IP67Sealed;Pushbutton;NC/NOCombined;BlackActuator |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1106 | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPDT | Operation | Momentary |
| Voltage Rating | 48V | Number of Poles | 2 |
| Switch Function | On-Mom | Voltage - Rated AC | 48V |
| Current Rating (Max) | 500mA (AC), 200mA (DC) | ||
Mechanical
| Packaging | Bulk | Frame Type | Round,curved |
| Termination | SolderLugs | Contact Form | DPST1NC,1NO |
| Plunger Size | Black | Actuator Type | Round, Button |
| Cable Opening | Circular - 13.60mm Dia | Mounting Type | Panel Mount, Front |
| Contact Finish | Black | Mounting Style | Panel |
| Contact Material | Silver,goldplated | Termination Style | Solder Lug |
| Color - Actuator/Cap | Black | Mounting Hole Diameter | 12.9mm |
| Panel Cutout Dimensions | Circular - 13.60mm Dia | ||
Product Info
| Type | Standard | Series | IP |
| Features | Tactile Feedback | Circuit Type | SPDT |
| Electrical Life | 500,000 Cycles | Output Configuration | Panel Mount, Front |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 125°C |
