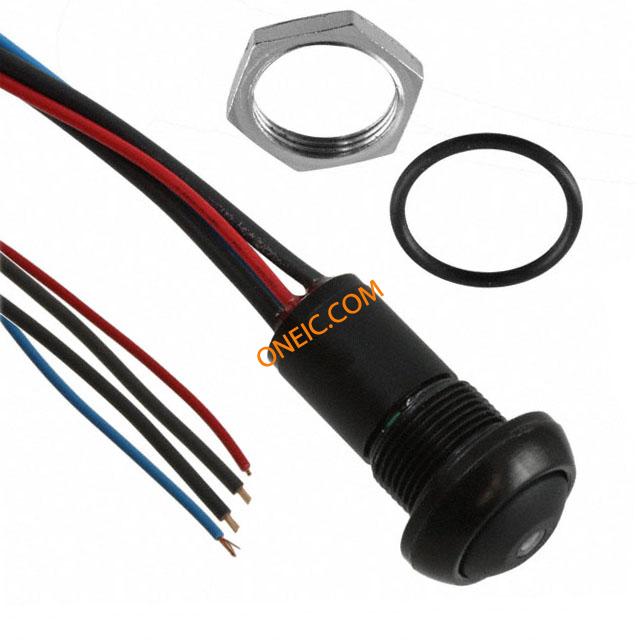

IPR3FAD2L0G
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.5A 48V Switch Push Button N.O. SPST Round Plunger 2A 125VAC 24VDC Momentary Contact Wire Lead Panel Mount Switch;IP67Sealed;PB;Momentary;BlackActuatorandGreenLED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1144 | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPST-NO | Operation | Momentary |
| Voltage Rating | 48V | Number of Poles | 1 |
| Switch Function | Off-Mom | Current Rating (Max) | 500mA (AC), 200mA (DC) |
| Illumination Voltage (Nominal) | 2 VDC | ||
Mechanical
| Packaging | Bulk | Frame Type | Round,curved |
| Termination | WireLeads | Contact Form | SPSTNO |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Front |
| Actuator Color | Black | Mounting Style | Panel |
| Contact Material | Silver,goldplated | Termination Style | Wire Leads |
| Color - Actuator/Cap | Black | Mounting Hole Diameter | 12.9mm |
| Panel Cutout Dimensions | Circular - 13.60mm Dia | Illumination Type, Color | LED, Green |
Product Info
| Type | Standard, Illuminated | Features | Tactile Feedback |
| Electrical Life | 500,000 Cycles | ||
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 125°C |
