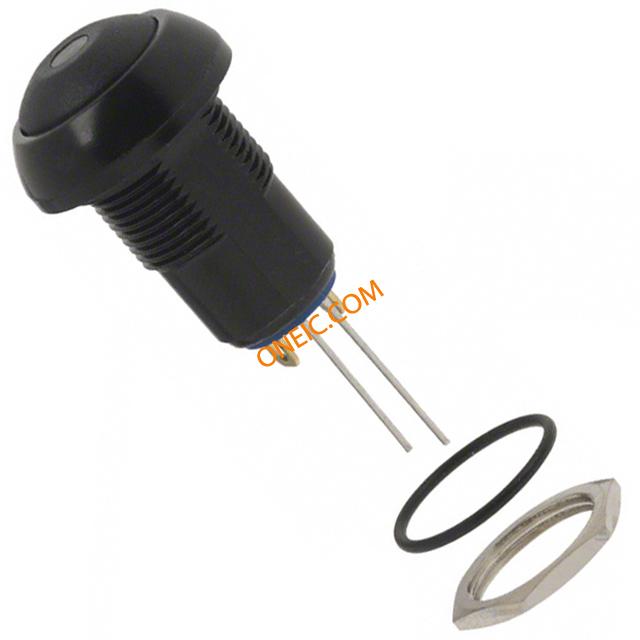

IPR1SAD2L0G
| Manufacturer | |
| Description | SWITCH PUSHBUTTON SPST 2A 125V Switch Push Button OFF ON SPST Round Plunger 2A 125VAC 24VDC Latching Solder Lug Panel Mount Switch;IP67Sealed;PB;Latching;BlackActuatorandGreenLED |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1115 | Standard Package | 25 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPST | Operation | Latching |
| Voltage Rating | 125V | Number of Poles | 1 |
| Switch Function | Off-On | Voltage - Nominal | 2 VDC |
| Voltage - Rated AC | 125V | Current Rating (Max) | 2A (AC), 100mA (DC) |
| Illumination Voltage (Nominal) | 2 VDC | ||
Mechanical
| Packaging | Bulk | Frame Type | Round,curved |
| Termination | SolderLugs | Contact Form | SPSTNO |
| Actuator Type | Round, Button | Cable Opening | Circular - 13.60mm Dia |
| Mounting Type | Panel Mount, Front | Actuator Color | Black |
| Contact Finish | Black | Mounting Style | Panel |
| Contact Material | Silver,goldplated | Termination Style | Solder Lug |
| Illumination Color | LED, Green | Color - Actuator/Cap | Black |
| Mounting Hole Diameter | 12.9mm | Panel Cutout Dimensions | Circular - 13.60mm Dia |
| Illumination Type, Color | LED, Green | ||
Product Info
| Type | Standard, Illuminated | Series | IP |
| Features | Epoxy Sealed Terminals | Circuit Type | SPST |
| Electrical Life | 200,000 Cycles | Output Configuration | Panel Mount, Front |
Environmental
| Ingress Protection | IP67 - Dust Tight, Waterproof | Operating Temperature | -40°C ~ 85°C |
