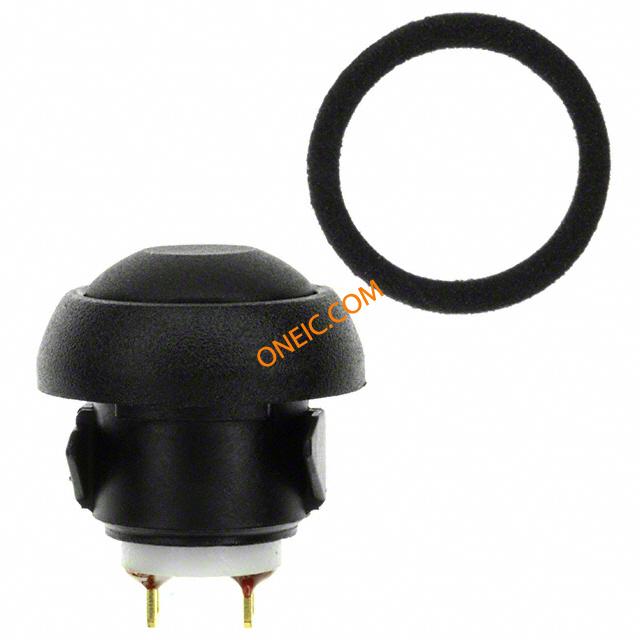

IBR3SAD200
| Manufacturer | |
| Description | SWITCH PUSH SPST-NO 0.4A 32V Switch Push Button N.O. SPST Round Curved Button 0.4A 125VAC 50VDC Momentary Contact Solder Lug Switch;IP67Sealed;PB;Snap-InMomentary;withBlackActuator |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1089 | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPST-NO | Voltage Rating | 32V |
| Switch Function | Off-Mom | Current Rating (Max) | 400mA (AC), 100mA (DC) |
Mechanical
| Packaging | Bulk | Frame Type | RoundCurved |
| Termination | SolderLugs | Plunger Size | Black |
| Actuator Type | Round, Button | Mounting Type | Panel Mount, Snap-In |
| Termination Style | Solder Lug | Color - Actuator/Cap | Black |

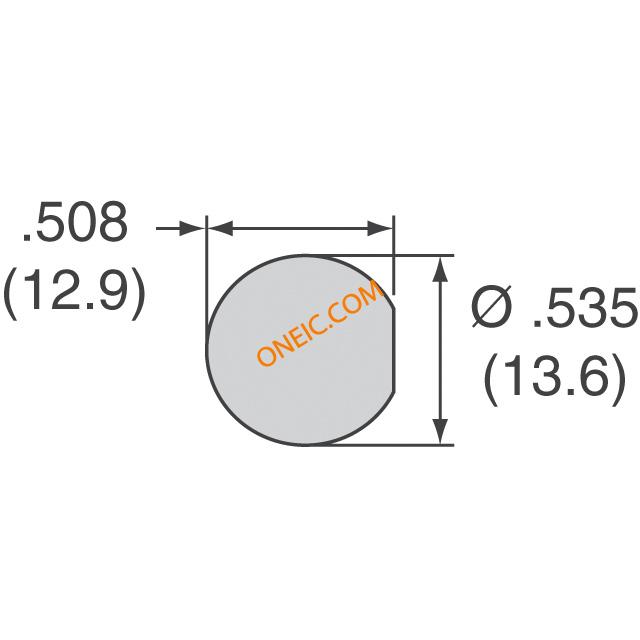

| Panel Cutout Dimensions | Circular - 13.60mm Dia | ||
Product Info
| Type | Standard | Features | Epoxy Sealed Terminals |
| Electrical Life | 500,000 Cycles | ||
Environmental
| Mechanical Life | 1,000,000 Cycles | Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature | -40°C ~ 85°C | ||
