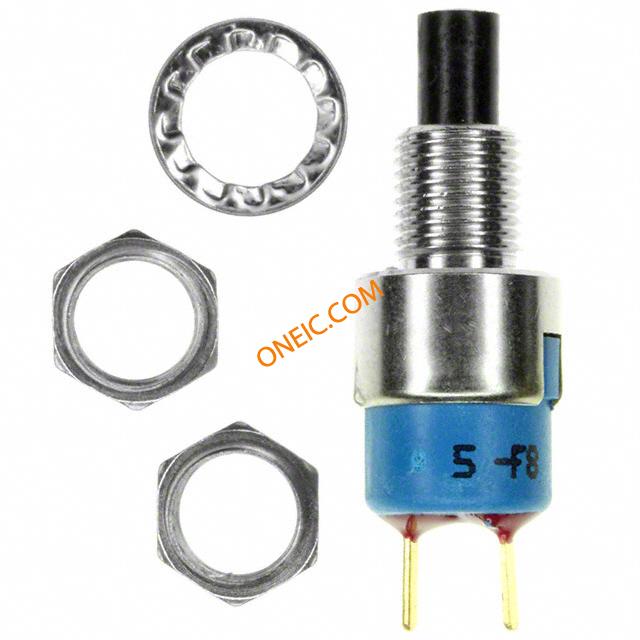

9432CDB
| Manufacturer | |
| Description | SWITCH PUSH SPST-NC 0.1A 30V Switch Push Button N.C. SPST Round Plunger 0.1A 30VDC Momentary Contact PC Pins Panel Mount/Through Hole Switch;Pushbutton;NormallyClosed;withPCTerminals |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1026 | Standard Package | 50 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPST-NC | Operation | Momentary |
| Voltage Rating | 30V | Switch Function | On-Mom |
| Current Rating (Max) | 100mA (DC) | ||
Mechanical
| Packaging | Bulk | Termination | PCBPins |
| Contact Form | SPSTNC | Actuator Type | Round, Plunger |
| Mounting Type | Panel Mount, Rear | Mounting Style | Panel |
| Contact Material | Brass,GoldPlated | Termination Style | PC Pin |
| Color - Actuator/Cap | Black | Mounting Hole Diameter | 0.25in. |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | ||
Product Info
| Type | Standard | Features | Epoxy Sealed Terminals |
| Electrical Life | 250,000 Cycles | ||
Environmental
| Operating Temperature | -30°C ~ 65°C | ||
