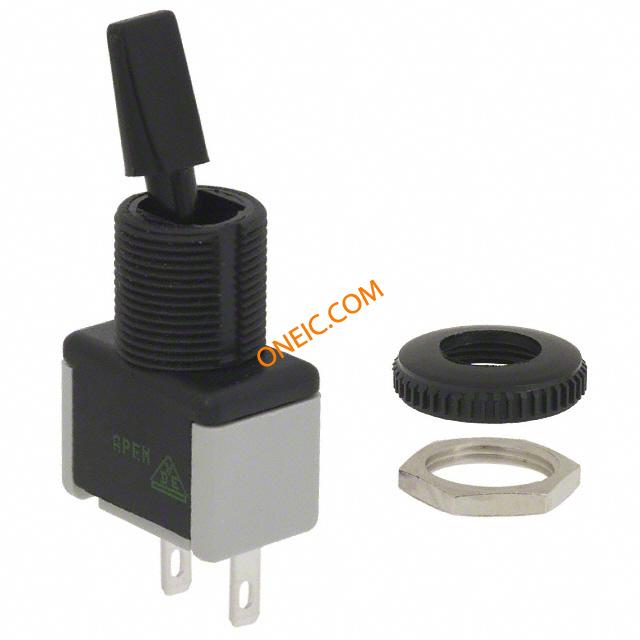

4631A22UU
| Manufacturer | |
| Description | SWITCH PWR TOGGLE SPST 6A SWITCH TOGGLE SPST 6A 125V Switch Toggle ON OFF SPST Flat Lever Quick Conn/Solder Lug 6A 250VAC Panel Mount with Threads Switch;Toggle;Power;SinglePole;2Position |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 679-1259 | Standard Package | 20 |
Compliance
| RoHS | RoHS Compliant Part | ||
Electrical
| Circuit | SPST | Operation | OnOff |
| Voltage Rating | 125V | Switch Function | On-Off |
| Current Rating (Max) | 6A (AC) | ||
Mechanical
| Packaging | Bulk | Termination | Solder/QCTabs |
| Contact Form | SPST | Actuator Type | Flatted |
| Mounting Type | Panel Mount | Bushing Thread | M12 x 0.75 |
| Actuator Length | 13.50mm | Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Termination Style | Solder, Quick Connect - 0.110" (2.8mm) | Panel Cutout Dimensions | Circular - 12.20mm Dia |
Product Info
| Type | Toggle | Illumination | Non-Illuminated |
| Electrical Life | 10,000 Cycles | ||
Environmental
| Operating Temperature | -20°C ~ 55°C | ||
