点击放大查看
364M595L
| Manufacturer | |
| Description | RF Connectors 50 OHM LOW METAL CONN BNC JACK R/A 50 OHM PCB RF Connectors / Coaxial Connectors 50 OHM LOW METAL Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Nickel/Zinc;CntPlating:Gold |
| Category |
Business
| Product | PCB Connectors | Other Names | 991-1022 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 50 |
| Factory Pack Quantity | 50 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Coupling Factor | Bayonet | Frequency - Max | 4GHz |
Mechanical
| Packaging | Tray | Body Finish | Nickel |
| Orientation | Right Angle | Termination | 2-PinThruHole |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle | Angle of Throw | RightAngle |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Housing Finish | Nickel/Zinc |
| Connector Style | BNC | Contact Material | Phosphor Bronze |
| Primary Material | BNC | Termination Style | Through Hole |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polypropylene (PP) |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
Product Info
| Type | PCBJack | Gender | Jack |
| Features | Board Guide | RF Family/Standard | BNC |
| Application Specifics | Commercial | ||
Documents & Media
Similar Parts
364NT
Bomar Interconnect
スクリューおよびファスナ HARDWARE JAM NUT NUT FOR 364 SERIES Screws & Fasteners HARDWARE JAM NUT Connector Accessories Jam Nut Straight Brass Nickel Finish hardware,jamnutforpanelmounting364-seriesbncpcbjacks CONN JAM NUT FOR BNC JACKS

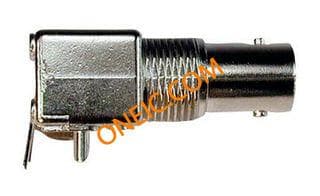

31-5637
