364A2595
| Manufacturer | |
| Description | RF Connectors 50 OHM DBL WHT VALOX X-2 DUAL STACKED CONN BNC JACK R/A 50 OHM PCB CONNECTOR;RF COAXIAL;DUAL BNC RIGHT ANGLE JACKS;WHITE 50 OHM RF Connectors / Coaxial Connectors 50 OHM DBL WHT VALOX X-2 DUAL STACKED Conn Dual Port BNC F/F 0Hz to 4GHz 50Ohm Solder RA Thru-Hole Gold RF/COAXIAL, DUAL BNC JACK R/A 50 OHM SLDR Conn;RF;BNC;RightAngle;PCBJack;50Ohms;Body:WhiteValox;CntPlating:Gold |
| Category |
Business
| Product | Connectors | Other Names | 991-1023 |
| Product Category | RF Connectors | Standard Package | 20 |
| Factory Pack Quantity | 20 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Impedance | 50 Ohms | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Color | White | Weight | 0.027 |
| Packaging | Bulk | Cable Type | :- |
| Body Finish | Nickel | Orientation | Right Angle |
| Termination | Solder | Body Material | Brass |
| Housing Color | White | Mounting Type | Panel Mount, Bulkhead; Through Hole, Right Angle |
| Angle of Throw | RightAngle | Connector Type | Jack PCB Mount |
| Contact Finish | Gold | Fastening Type | Bayonet Lock |
| Housing Finish | WhiteValox | Mounting Style | Through Hole |
| Connector Style | BNC | Contact Material | Phosphor Copper |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polypropylene (PP) |
| Center Contact Plating | Gold | Center Contact Material | Phosphor Bronze |
| Supplier Device Package | Right Angle | ||
Product Info
| Type | Dual Port BNC | Gender | Receptacle (Female) |
| Series | :- | Connection Type | PCB |
| RF Family/Standard | BNC | Application Specifics | Commercial |
Documents & Media
Similar Parts

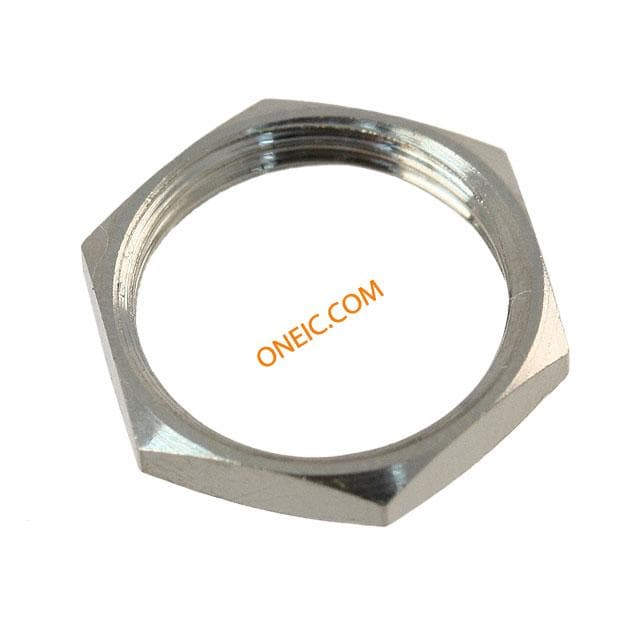

364NT
Bomar Interconnect
スクリューおよびファスナ HARDWARE JAM NUT NUT FOR 364 SERIES Screws & Fasteners HARDWARE JAM NUT Connector Accessories Jam Nut Straight Brass Nickel Finish hardware,jamnutforpanelmounting364-seriesbncpcbjacks CONN JAM NUT FOR BNC JACKS

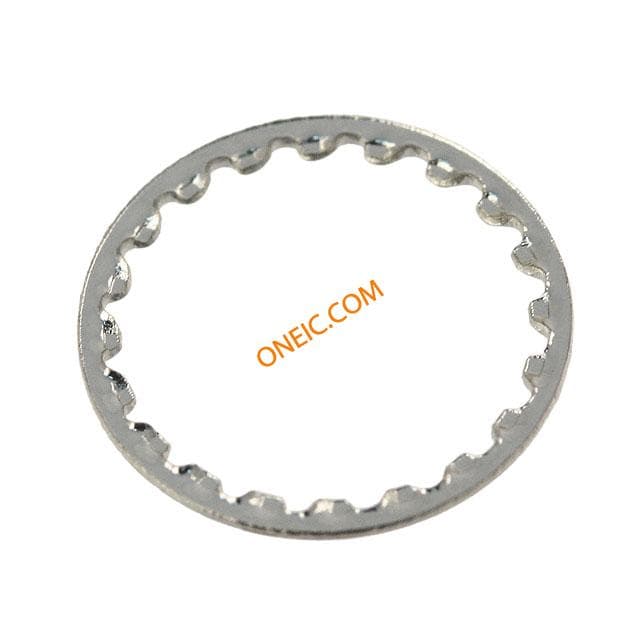

364LW
Bomar Interconnect
Screws & Fasteners HARDWARE LOCK WASHER LOCK WASHER FOR 364 SERIES Connector Accessories Lock Washer Straight Steel Zinc Finish hardware,lockwasherforpanelmounting364-seriesbncpcbjacks CONN LOCKWASHER FOR BNC JACKS

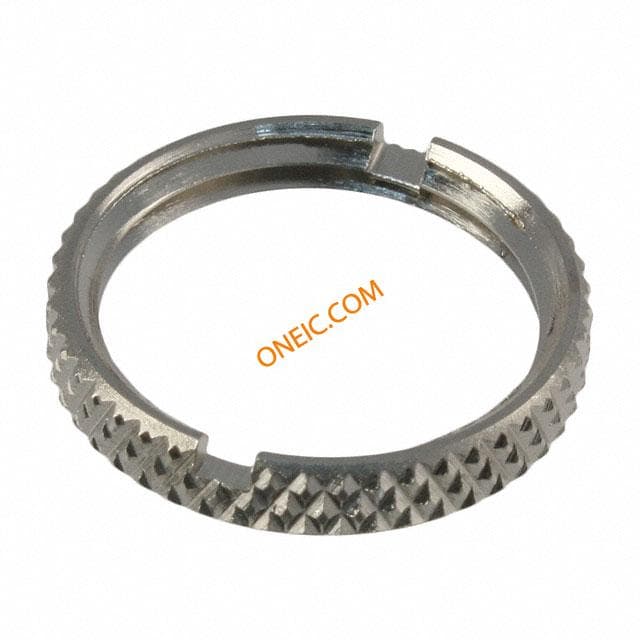

364KNT
