361V504EFT
| Manufacturer | |
| Description | RF Connectors BNC V-BITE W/FLG 50 OHM CONN BNC JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors BNC V-BITE W/FLG 50 OHM Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Brass/Nickel;Cnt:Phos./Gold |
| Category |
Business
| Product | Connectors | Other Names | 991-1035 |
| Product Category | RF Connectors / Coaxial Connectors | Standard Package | 80 |
| Factory Pack Quantity | 80 | ||
Compliance
| RoHS | RoHS Compliant By Exemption | Tariff No | 85366910 |
| Rad Hardened | No | ||
Electrical
| Impedance | 50 Ohm | Voltage Rating | 500V |
| Frequency - Max | 4GHz | ||
Mechanical
| Weight | 0.0001 | Packaging | Tray |
| Cable Type | :- | Body Finish | Nickel |
| Orientation | Straight | Termination | Solder |
| Body Material | Brass | Housing Color | Silver |
| Mounting Type | Board Edge, End Launch | Angle of Throw | Straight |
| Connector Type | Jack, Female Socket | Contact Finish | Gold |
| Fastening Type | Bayonet Lock | Mounting Style | Edge |
| Plating - Body | Nickel | Connector Style | BNC |
| Contact Material | Phosphor Bronze | Housing Material | Brass |
| Primary Material | BNC | Termination Style | Solder |
| Mating Orientation | Bayonet | Shield Termination | Solder |
| Contact Termination | Solder | Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Insulation Material | Teflon | Center Contact Plating | Gold |
| Center Contact Material | Brass | Supplier Device Package | Straight |
| 1st Connector Mounting Type | :PCB | ||
Product Info
| Type | BNC | Gender | Jack |
| Series | :V-Bite | Connection Type | PCB |
| RF Family/Standard | BNC | Application Specifics | Commercial |
Environmental
| Operating Temperature | -55°C ~ 200°C | ||
Documents & Media
Similar Parts

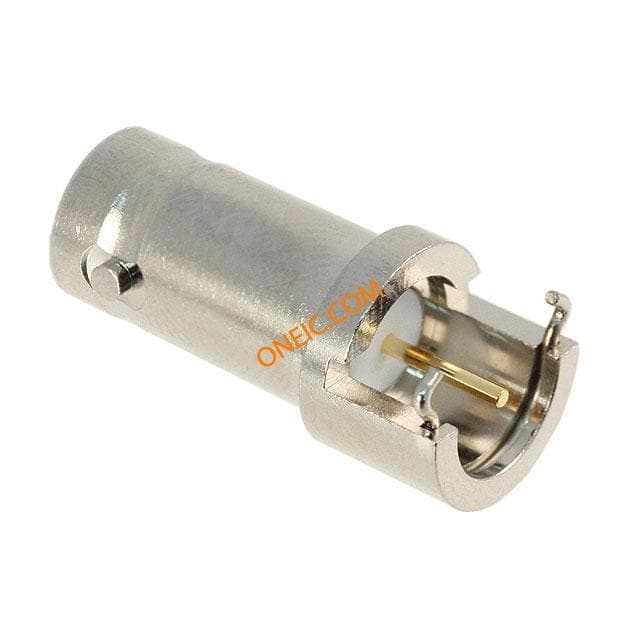

361V504ER
Bomar Interconnect
RF Connectors 50 OHM BNC V-BITE CONN BNC JACK 50 OHM EDGE MNT CONNECTOR;RF COAXIAL;V-BITE BNC JACK RECEPTACLE;PCB EDGE MOUNT;50 OHM;FOR REFLOW RF Connectors / Coaxial Connectors 50 OHM BNC V-BITE Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE FOR REFLOW SOLDERING
361V504ET
Bomar Interconnect
RF Connectors 50 OHM BNC V-BITE CONN BNC JACK 50 OHM EDGE MNT RF Connectors / Coaxial Connectors 50 OHM BNC V-BITE Conn BNC F 0Hz to 4GHz 50Ohm Solder ST Edge Mount Gold JACK BNC, PCB, LAUNCHER Conn;RF;BNC;Straight;PCBJack;EdgeMount;50Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE, 50, THREADED, TFE/GOLD

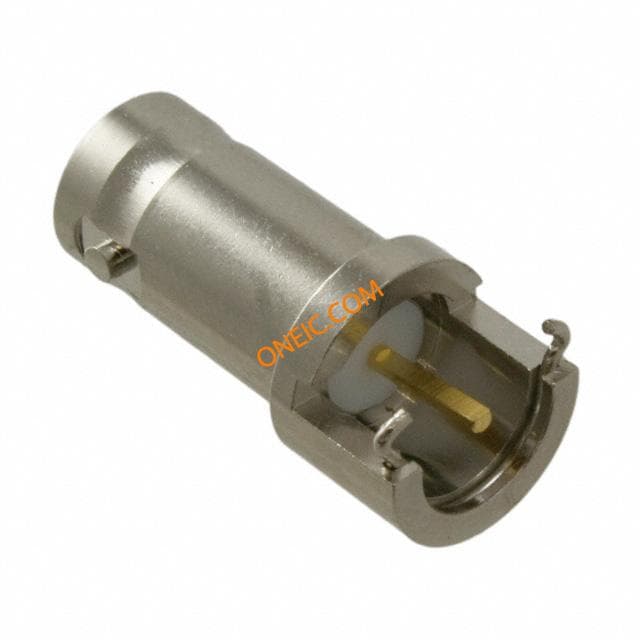

361V704ER
Bomar Interconnect
RF Connectors 75 OHM BNC V-BITE CONN BNC JACK 75 OHM EDGE MNT RF Connectors / Coaxial Connectors 75 OHM BNC V-BITE Conn BNC F 0Hz to 1GHz 75Ohm Solder ST Edge Mount Gold Conn;RF;BNC;Straight;PCBJack;EdgeMount;75Ohms;Body:Brass/Nickel;Cnt:Phos./Gold BNC V-BITE,75 OHM,TEFLON,GOLD PIN

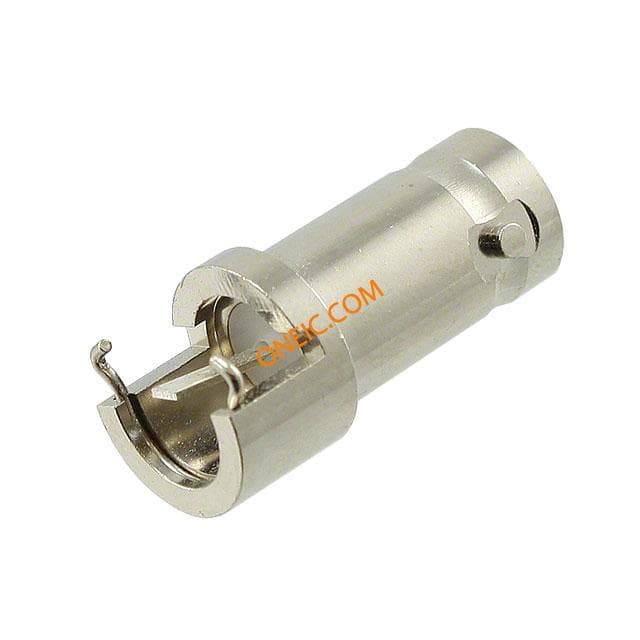

361V509E
