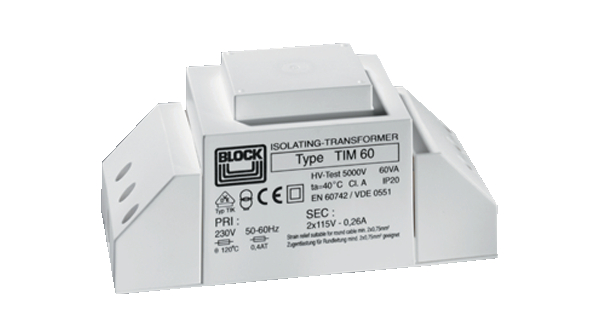

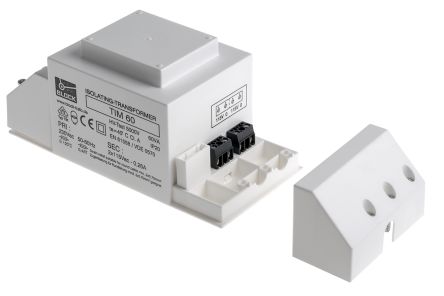

TIM 60
| Manufacturer | |
| Description | Isolation transformer,60VA 2x115V o/p Isolating transformer 60 VA 230 VAC 115 (2x) VAC, TIM 60, Block Block 60VA 隔离变压器, 初级:230V ac 2 x 次级:115V ac |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | II | ||
Electrical
| Power - Rated | 60VA | Voltage - Test | 5 |
| Voltage Rating | 230 | Frequency - Min | 50Hz |
| Frequency Range | 50...60 Hz | Current - Output | 260mA |
| Number of Outputs | 2 | Voltage - Primary | 230V |
| Voltage - Secondary | 115V 交流 | Frequency - Operating | 60Hz |
| Voltage - Supply (Vcc/Vdd) | 230V 交流 | Voltage - Secondary (Full Load) | 115 V, 230 V |
| Voltage - Protection Level (VP) (2416) | IP 20 | ||
Mechanical
| Depth | 77mm | Width | 76mm |
| Height | 76 | Length | 166mm |
| Weight | 1.55kg | Mounting Type | Chassis Mount |
| Size / Dimension | 166 x 76 x 77mm | Material - Insulation | A |
Environmental
| Temperature | max.40 °C | Maximum Temperature Limit | +40°C |
