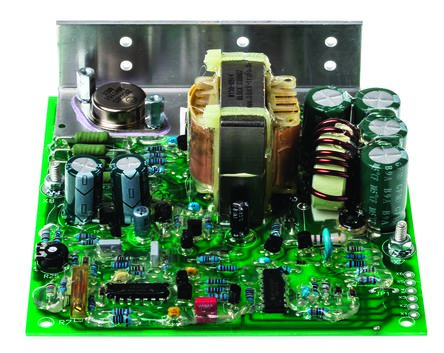

SDC60/15-20
| Manufacturer | |
| Description | 300W Switching Regulator, 10 to 60V dc Input, 4.5 to 15V dc Output, 0 to 20A CONVERTER, DC/DC, STEP-DOWN, 4.5-15V Block 300W 开关稳压器 , 10 → 60V dc输入, 4.5 → 15V dc输出, 0 → 20A输出 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85044030 |
| Approval Agency | :EN | ||
Electrical
| Noise | 150mV Pk-Pk | Efficiency | 75% |
| Power - Rated | 300W | Converter Type | :Non Isolated POL |
| Voltage Rating | 10 → 60V dc | Line Regulation | ±2% |
| Load Regulation | ±2% | Current - Output | 0 → 20A |
| Voltage - Supply | :60V | Number of Outputs | 1 |
| Voltage - Input (Min) | :Fixed, Adjustable | Voltage - Output (Max) | :15VDC |
| DC Voltage - Input (Max) | :60V | Voltage - Output (Min/Fixed) | :4.5VDC |
| Voltage - Continuous Operating (Max) (MCOV) | :60VDC | ||
Mechanical
| Depth | 51mm | Width | 127mm |
| Length | 137mm | Weight | 0.4kg |
| Mounting Type | Screw Mount | ||
Environmental
| Operating Temperature | 0°C | Maximum Temperature Limit | +70°C |
