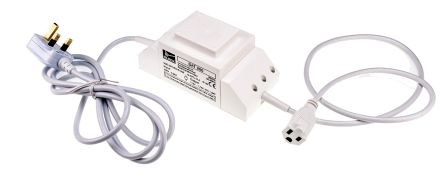

SAT200
| Manufacturer | |
| Description | Step down autotransformer,200VA,115V o/p TRANSFORMER, AUTO, 200VA, (UK) TRANSFORMERSAT200 Block 200VA 自耦变压器, 230V ac 初级线圈, 115 V 交流 次级线圈 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85043180 | Approval Agency | :EN, VDE |
Electrical
| Power - Input | :200VA | Power - Rated | 200VA |
| Voltage Rating | :115VAC | Frequency - Max | :60Hz |
| Current - Output | :1.74A | Voltage - Supply | :50Hz |
| Voltage - Primary | 230V | Current Rating (Max) | :1.74A |
| Voltage - Secondary (Full Load) | 115 V | ||
Mechanical
| Depth | 77mm | Width | 76mm |
| Length | 166mm | Weight | :2.4kg |
| Mounting Type | :Panel | Terminal Type | :2m Cable, UK Mains Plug |
| Material - Core | :1.74A | Primary Material | :0V, 115V, 230V |
| Size / Dimension | 166 x 76 x 77mm | Transformer Type | :Voltage Changers |
Product Info
| Plug Type | :UK | Socket Type | :1m cable, 3-pin US mains socket |
Environmental
| Operating Temperature | :40°C | Maximum Temperature Limit | +40°C |
