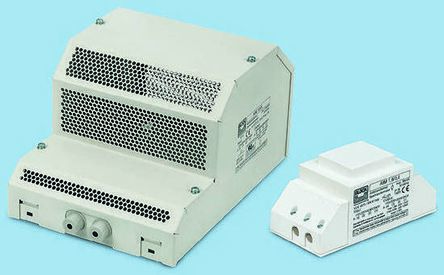

点击放大查看
AIM16/8
| Manufacturer | |
| Description | Autotransformer panel-mount 16 / 8A TRANSFORMER, AUTO, 16/8A Block 封闭构造 自耦变压器, 115 V ac, 230 V ac 初级线圈, 115 V 交流，220 V 交流，230 V 交流，240 V 交流 次级线圈 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| SVHC | :No SVHC (20-Jun-2013) | Tariff No | 85043180 |
| Approval Agency | :DIN, EN, IEC, VDE | ||
Electrical
| Power - Input | :3840VA | Power - Rated | 3840VA |
| Voltage Rating | :240VAC | Frequency - Max | 60Hz |
| Current - Output | :16A | Voltage - Supply | :50Hz |
| Voltage - Primary | 115 V, 230 V | Current Rating (Max) | :16A |
| Frequency - Operating | 50Hz | Voltage - Input (Min) | :115 V / 220 V / 230 V / 240 V |
| Voltage - Secondary (Full Load) | 115 V, 240 V | ||
Mechanical
| Depth | 200mm | Width | 165mm |
| Height | :166mm | Length | 284mm |
| Weight | :16.5kg | Termination | Screw |
| Construction | Enclosed | Mounting Type | Panel Mount |
| Terminal Type | :Screw Terminals | Material - Core | :16A |
| Mounting Feature | :245 x 148 | Primary Material | :0V, 115V, 220V, 230V, 240V |
| Size / Dimension | 283 x 200 x 165mm | Transformer Type | :Encapsulated |
Environmental
| Operating Temperature | -20°C | Maximum Temperature Limit | +40°C |
