点击放大查看

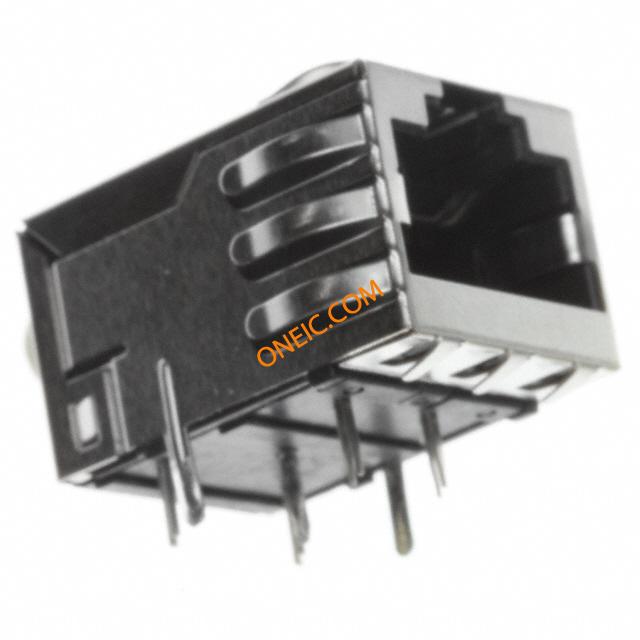

SS-77100-004
| Manufacturer | |
| Description | CONN MOD JACK R/A 8P8C SHIELDED JACK, CAT7, ARJ45, R/A, SHIELDED Cat7a1porthorizontalARJ45 |
| Category |
Business
| Standard Package | 77 | ||
Compliance
| RoHS | RoHS Compliant Part | SVHC | :No SVHC (20-Jun-2013) |
| Tariff No | 85369010 | ||
Electrical
| Connector - Voltage Input | :Cat7 | ||
Mechanical
| Weight | 0.0058 | LED Color | Does Not Contain LED |
| Packaging | Bulk | Shielding | Shielded, EMI Finger |
| Orientation | 90° Angle (Right) | Termination | Solder |
| Mounting Type | Through Hole | Tab Direction | Up |
| Connector Type | Jack | Contact Finish | Gold |
| Number of Rows | 1 | Material Finish | :- |
| Contact Material | Copper Alloy | Housing Material | Thermoplastic |
| Number of Contacts | :8 | Contact Termination | :Through Hole Right Angle |
| Number of Positions | :8 | Contact Finish Thickness | 50µin (1.27µm) |
Product Info
| Gender | :Socket | Series | :- |
| Number of Ports | 1 | Number of Positions/Contacts | 8p8c (ARJ45, Ethernet, Split Pairs) |
Environmental
| Ratings | Cat7a | ||
Documents & Media
Similar Parts
CA77-001M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 1 METER
CA77-002M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 2 METER LEAD, CAT7 - CAT7, ARJ45, 2M Cat7Cat72Mcableassembly
CA77-003M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 3 METER LEAD, CAT7 - CAT7, ARJ45, 3M Cat7Cat73Mcableassembly
CA77-005M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 5 METER LEAD, CAT7 - CAT7, ARJ45, 5M Cat7Cat75Mcableassembly
CA76-001M0-8
Bel Fuse Inc.
PATCH CORD CAT6 TO CAT7A 1 METER
CA76-002M0-8
Bel Fuse Inc.
PATCH CORD CAT6 TO CAT7A 2 METER
CA76-005M0-8
Bel Fuse Inc.
PATCH CORD CAT6 TO CAT7A 5 METER
CA76-007M0-8
Bel Fuse Inc.
PATCH CORD CAT6 TO CAT7A 7 METER
CA76-010M0-8
Bel Fuse Inc.
PATCH CORD CAT6 TO CAT7A 10METER
CA77-007M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 7 METER
CA77-010M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 10 METER
CA77-050M0-8
Bel Fuse Inc.
PATCH CORD CAT7A ORANGE 50 METER

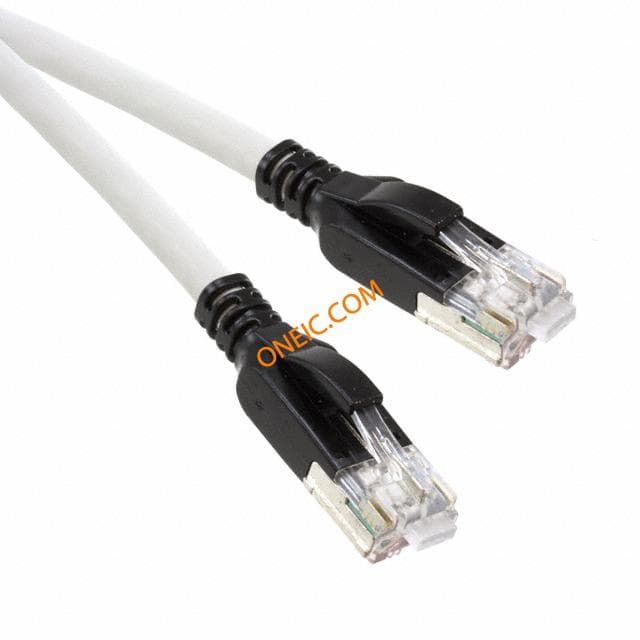

CA77-001M0-2
