CFDM 20P 1500 S35L
| Manufacturer | |

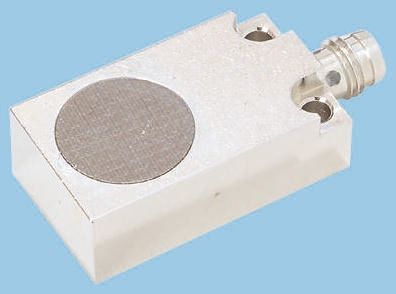

| Description | 5mm Capacitive Proximity Sensor, PNP, 200mA, IP65 Baumer 电容式传感器 5 mm length 44mm PNP supply voltage 10 → 30 V 直流 IP65 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output Type | PNP | Voltage Rating | 30V |
| Voltage - Supply | 10 → 30 V dc | Current - Switching | 200 mA |
| Overload Protection | 是 | Frequency - Switching | 50 Hz |
| Reverse Polarity Protection | 是 | Voltage - DC Spark Over (Nom) | 30V |
| Current - Short Circuit Rating (SCCR) | Yes | ||
Mechanical
| Depth | 12mm | Width | 20mm |
| Length | 44mm | Shielding | Total |
| Terminal Type | M8 Connector | Connector Type | M8 连接器 |
| Housing Material | Nickel Plated Brass | Size / Dimension | 44 x 20 x 12 mm |
| Supplier Device Package | Block | ||
Product Info
| Style | 块状 | ||
Environmental
| Seal Rating | IP65 | Operating Range | 5 mm |
| Ingress Protection | IP65 | Detection Capability | 5 mm |
| Operating Temperature | +75°C | ||
