CFAM 30P 1600 S14
| Manufacturer | |

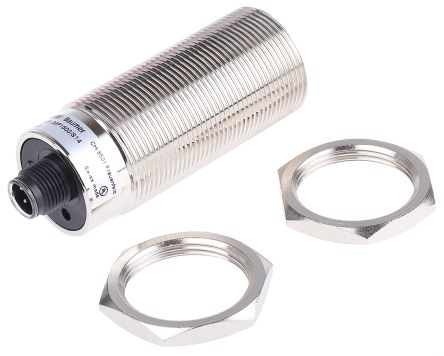

| Description | 4 to 15mm Capacitive Proximity Sensor, PNP, 200mA, M30 x 1.5, IP65 Baumer 电容式传感器 4 → 15 mm length 82mm PNP supply voltage 10 → 30 V 直流 IP65 |
| Category |
对参数有疑问？问 AI 助手
Compliance
| Protection Features | Yes | ||
Electrical
| Output Type | PNP | Voltage Rating | 30V |
| Voltage - Supply | 10 → 30 V dc | Current - Switching | 200 mA |
| Overload Protection | 是 | Frequency - Switching | 50 Hz |
| Reverse Polarity Protection | 是 | Voltage - DC Spark Over (Nom) | 30V |
| Current - Short Circuit Rating (SCCR) | Yes | ||
Mechanical
| Length | 82mm | Shielding | Total |
| Thread Size | M30 x 1.5 | Terminal Type | M12 Connector |
| Connector Type | M12 连接器 | Housing Material | Nickel Plated Brass |
| Supplier Device Package | Barrel | ||
Product Info
| Style | 柱体 | ||
Environmental
| Seal Rating | IP65 | Operating Range | 4 至 15 mm |
| Ingress Protection | IP65 | Detection Capability | 4 → 15 mm |
| Operating Temperature | +75°C | ||
