9130
| Manufacturer | |

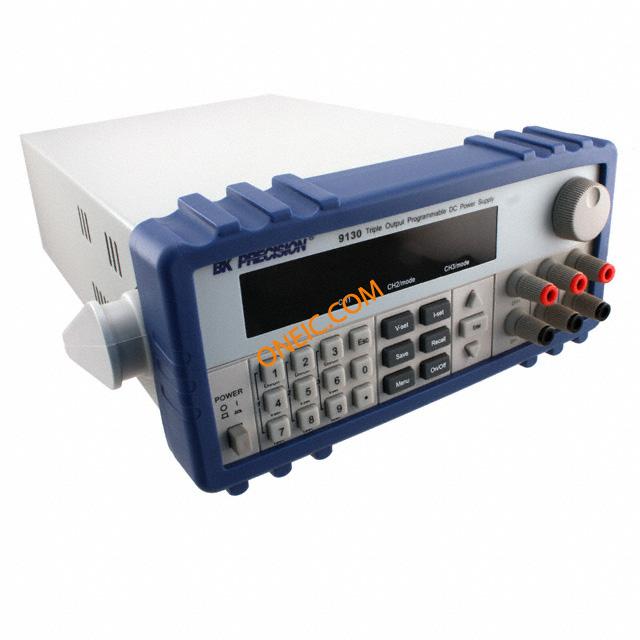

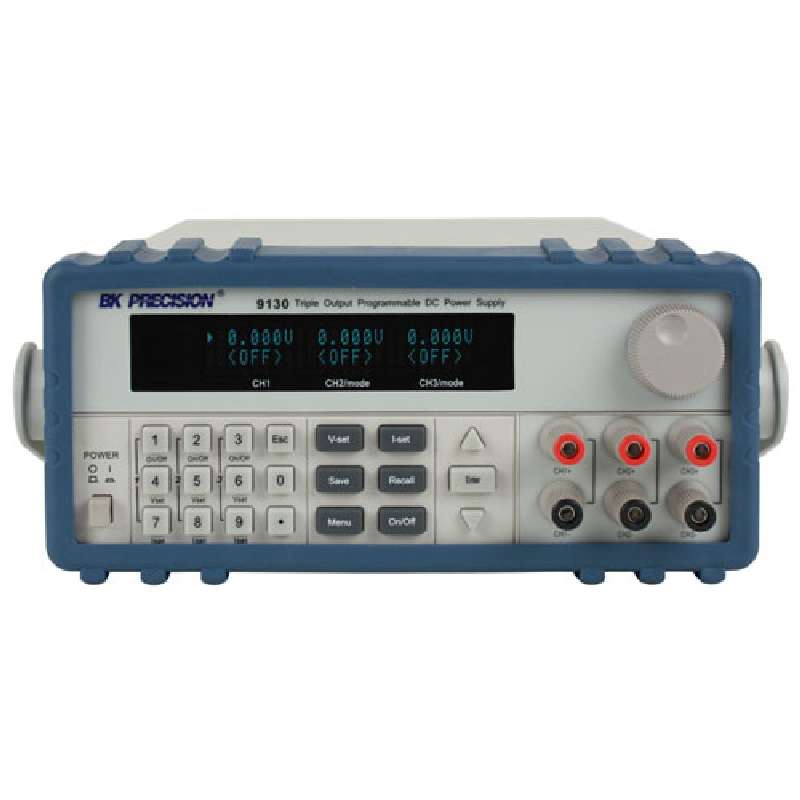

| Description | Bench Top Power Supplies 0-30V/0-3A 0-5V/0-3A PROGRAMMABLE TRIPLE PWR SUPPLY DC TRIPLE OUTPUT PROG TRIPLEOUTPUTPROGRAMMABLEDCPOWERSUPPLY Model 9130 Triple Programmable DC Power Supply with USB Interface |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Pack | 1 | Part # Aliases | EXD |
| Product Category | Bench Top Power Supplies | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant By Exemption | Protection Features | Over Voltage Protection, Over Temperature Protection |
Electrical
| Ripple | 3mV p-p, 1mV rms | Display Type | VFD |
| Voltage Rating | 110 VAC, 220 VAC Selectable | Current - Output | 0 ~ 3A, 0 ~ 3A, 0 ~ 3A |
| Voltage - Supply | 110VAC, 220VAC | Number of Outputs | 3 |
| Power Supply Type | Digital | Voltage - Output 3 | 5 V |
| Voltage - Input (Min) | 0 ~ 30VDC, 0 ~ 30VDC, 0 ~ 5VDC | Power - Average Forward | 750VA |
| Current Regulation - Line | 0.1% + 3mA | Current Regulation - Load | 0.01% + 3mA |
| Voltage - Supply, Battery | 115/220V ac | Voltage Regulation - Line | 0.01% + 3mV |
| Voltage Regulation - Load | 0.01% + 3mV | Current - Output / Channel | 3 A |
| Accuracy - Voltmeter; Ammeter | 0.03% + 10mV; 0.1% + 5mA | ||
Mechanical
| Width | 3.47in | Height | 13.9in |
| Length | 8.45in | Weight | 20 lbs (9.1kg) |
| Cable Type | North American Power Cord Included | Mounting Type | Surface Mount |
| Size / Dimension | 13.900" L x 8.450" W x 3.470" H (353.06mm x 214.63mm x 88.14mm) | ||
Product Info
| Type | Bench (AC to DC) | Series | 9130 |
| Features | Memory, Programmable, RS232 Port | Includes | User Manual, Power Cord, USB Communication Cable, Software Installation Disk |
| Manufacturer | BK Precision | Product Type | Dc Power Supply |
Environmental
| Operating Temperature | 0°C | ||
