2553
| Manufacturer | |
| Description | 70 MHZ 2 GSA/S 4 CH DSO Benchtop Oscilloscopes 70MHz,2 GSa/s, 4 CH Digital Oscilloscope 70MHz,2GSa/s,4ChannelDigitalStorageOscilloscope 2550 Series Digital Storage Oscilloscope, 4-Channel, 70 MHz Bandwidth |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | BK2553 | Standard Package | 1 |
Compliance
| RoHS | RoHS Compliant | Part Status | 2553 |
| Safety Category | CAT I | ||
Electrical
| Memory | 12Kpts | Accuracy | ±100ppm |
| Channels | 4 | Interface | LAN, USB |
| Memory Size | 48kpts | Display Type | LCD - Color |
| Voltage Rating | 100 V to 240 V | Input Impedance | 1M - 13pF |
| Maximum Payload | 50s/div | Rise Time (Typ) | 5ns |
| Voltage - Supply | 100 ~ 240VAC | Input Capacitance | 13pF |
| Number of Channels | 4 | Sampling Frequency | 2 GS/s |
| Sensitivity (mV/g) | 2mV/div | Voltage - Input (Min) | CAT I 400V |
| Sampling Rate (Per Second) | 2G | ||
Mechanical
| Width | 6.14in | Height | 4.65in |
| Length | 14.1in | Weight | 10 lbs |
| Bandwidth | 70MHz | Cable Type | UK, US, Euro Power Cord Included |
| Size / Dimension | 14.1 x 6.14 x 4.65in | Minimum Working Height | 5ns/div |
Product Info
| Type | Bench, Digital | Series | 2550 |
| Features | Up to 300 MHz bandwidth, 7 in widescreen color display | Function | Record, Playback, Save, Trend |

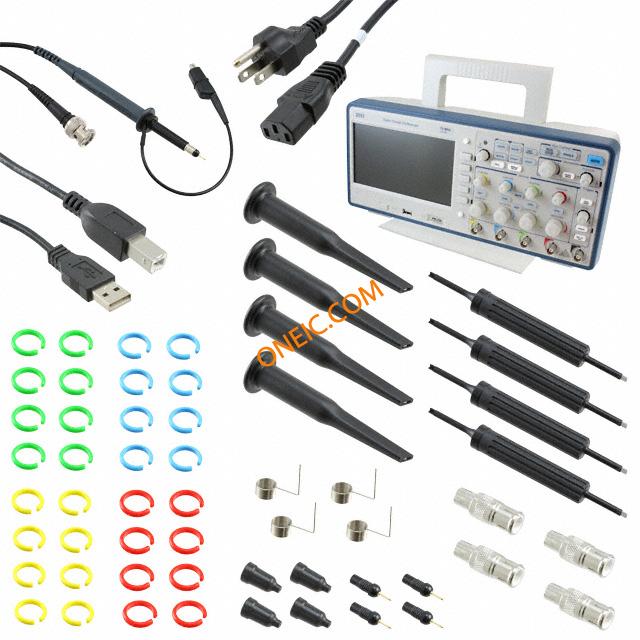

| Includes | Cord, Manual, Probes, USB Cable | Probe Type | Passive 10:1 (4) |
| Manufacturer | 2550Series | Product Type | Digital Oscilloscope |
| Trigger Type | Edge|Pulse|Video|Slope|Alternative | Configuration | Benchtop |
| Equipment Type | Digital Oscilloscopes | ||
Environmental
| Operating Temperature | +104°F | ||
